4. First Flow: Incident Triage in Two Views

It is time to build something.

Our first Flow will not call an API, open a database, or ask an AI model to make a judgment. It will accept one incident report, normalize the text, classify it with a deterministic rule, and record the decision at the appropriate log level.

That narrow scope is intentional. We want to see the relationship between FlowScript and the Board without credentials, network failures, or probabilistic behavior getting in the way. When the Flow behaves differently, we should be able to explain the difference from its input and six visible nodes.

By the end of the chapter, we will have changed the same program from both authoring surfaces, inspected its run evidence, and saved a known-good version.

Release check: The source follows the current renderer’s canonical event-parameter and import conventions and round-trips through the parser and renderer. Its six mappings have been checked against generated node declarations and direct tests of the constituent reconciliation behavior. Exact canvas gestures, a combined end-to-end run, screenshots, and the malformed-input trace must be captured against one named Flow-Like release before publication. This draft does not invent release-specific interface behavior.

4.1 The contract: accept, classify, respond

The smallest useful incident record for this exercise has one field:

report: string

The Generic Event also exposes its built-in payload: Struct. That payload is the original event object or envelope. We will leave it unused and work through the named, typed report output so the contract stays obvious.

The Flow applies one rule:

1. Remove whitespace from the beginning and end of the report.
2. Look for the phrase production is on hold, without regard to letter case.
3. If the phrase occurs, write the normalized report as an Error log.
4. Otherwise, write it as an Info log.

“Respond” means writing evidence to the run log in this first example. The Flow does not yet return a value to an API caller, send a notification, or create an incident record in Data Studio. Those would be reasonable next steps, but each would add concepts that are not needed to understand the dual-view loop.

The rule is deliberately literal. It is not a complete severity model, and it does not pretend to understand language. Given the same string, it produces the same branch decision every time. That makes it a good first program and a useful test fixture.

Three inputs will matter later:

Case	Input
Normal	Database latency is elevated, but production continues.
Urgent	PRODUCTION IS ON HOLD after an interface timeout.
Malformed	A payload in which report is not a string, such as {"report": 42}

We can already predict the domain behavior of the first two cases. The normal report does not contain the phrase and follows the Info path. The urgent report loses its surrounding spaces, matches despite its capitalization, and follows the Error path.

The malformed case is different. Its correct boundary depends on the release and invocation surface. A typed form may prevent the value from being submitted. An API adapter may reject the payload before the Board starts. If the value reaches the graph, the string operation may reject it there. We will observe that boundary rather than writing the desired outcome as if it had already happened.

One more distinction matters: the log::error operation records an Error-level message. Its node completes successfully; it does not throw an exception by itself. Some run lists may still classify or color the run from its highest log severity. The urgent path is a successful classification whose result happens to be serious. A true node failure is a different event, and its evidence should be read differently.

4.2 Build it visually

Create an App named Incident Triage, then create one Flow inside it. The initial Board contains six operations:

Node	Catalog identity	Responsibility
Generic Event	events_generic	Starts the Flow and exposes report: string
Trim String	string_trim	Removes leading and trailing whitespace
Contains	string_contains	Checks the normalized report for the incident phrase
Branch	control_branch	Selects the urgent or normal execution path
Log Error	log_error	Records an urgent report
Print Info	log_info	Records a normal report

The displayed names can evolve. The catalog identities are the version-matched implementation references used to verify the source mappings.

Begin with the Generic Event. Rename it Triage Incident, which gives the entry its triageIncident source alias, and add a string output named report. A Generic Event already provides its execution output and payload; FlowScript can additionally define named, typed outputs such as this one.

Connect the report value to the String input of Trim String. Connect Trimmed String to the String input of Contains. Configure Contains with the substring production is on hold, and enable its case-insensitive comparison.

The data side of the graph is now visible in Studio:

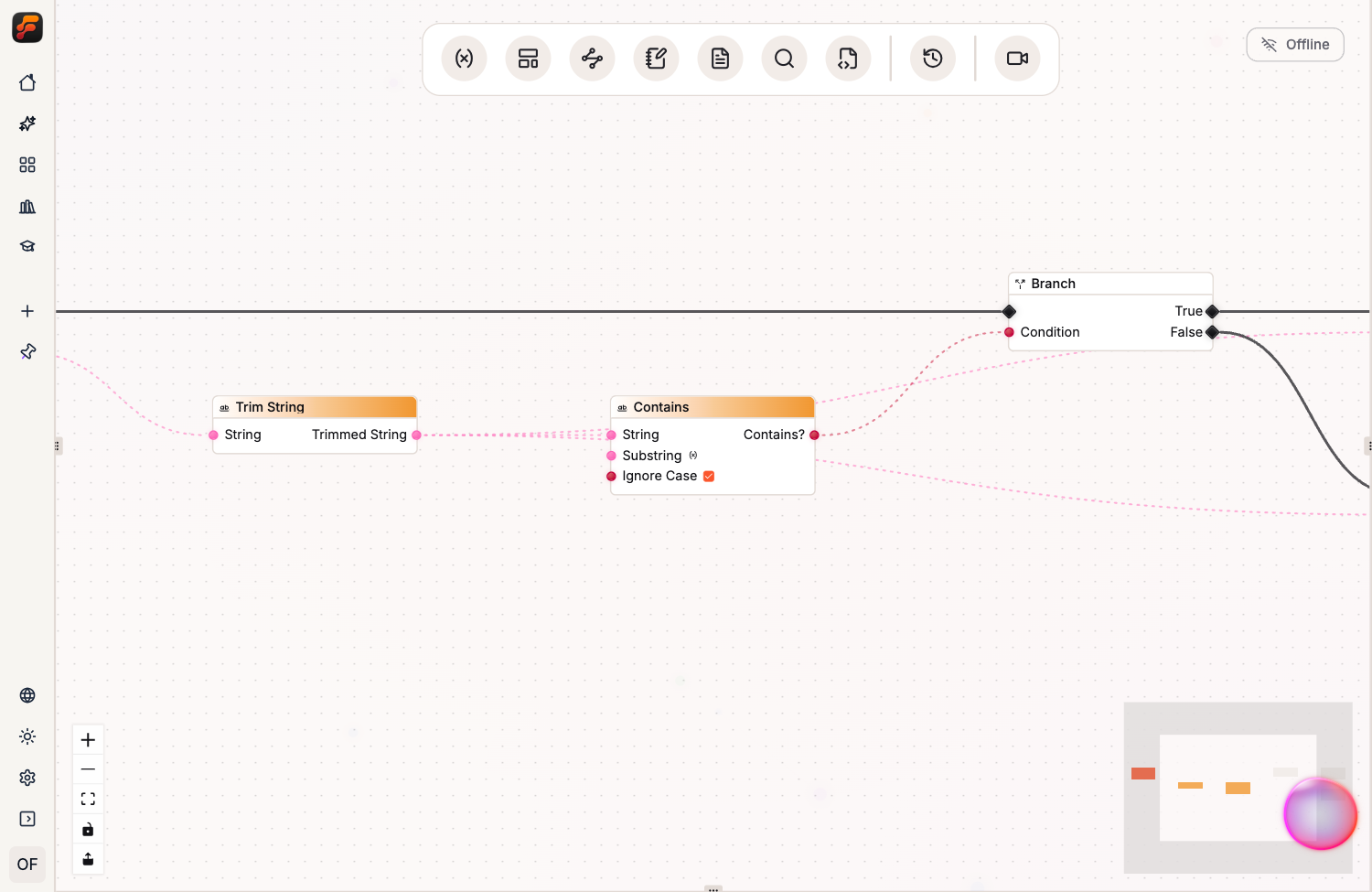

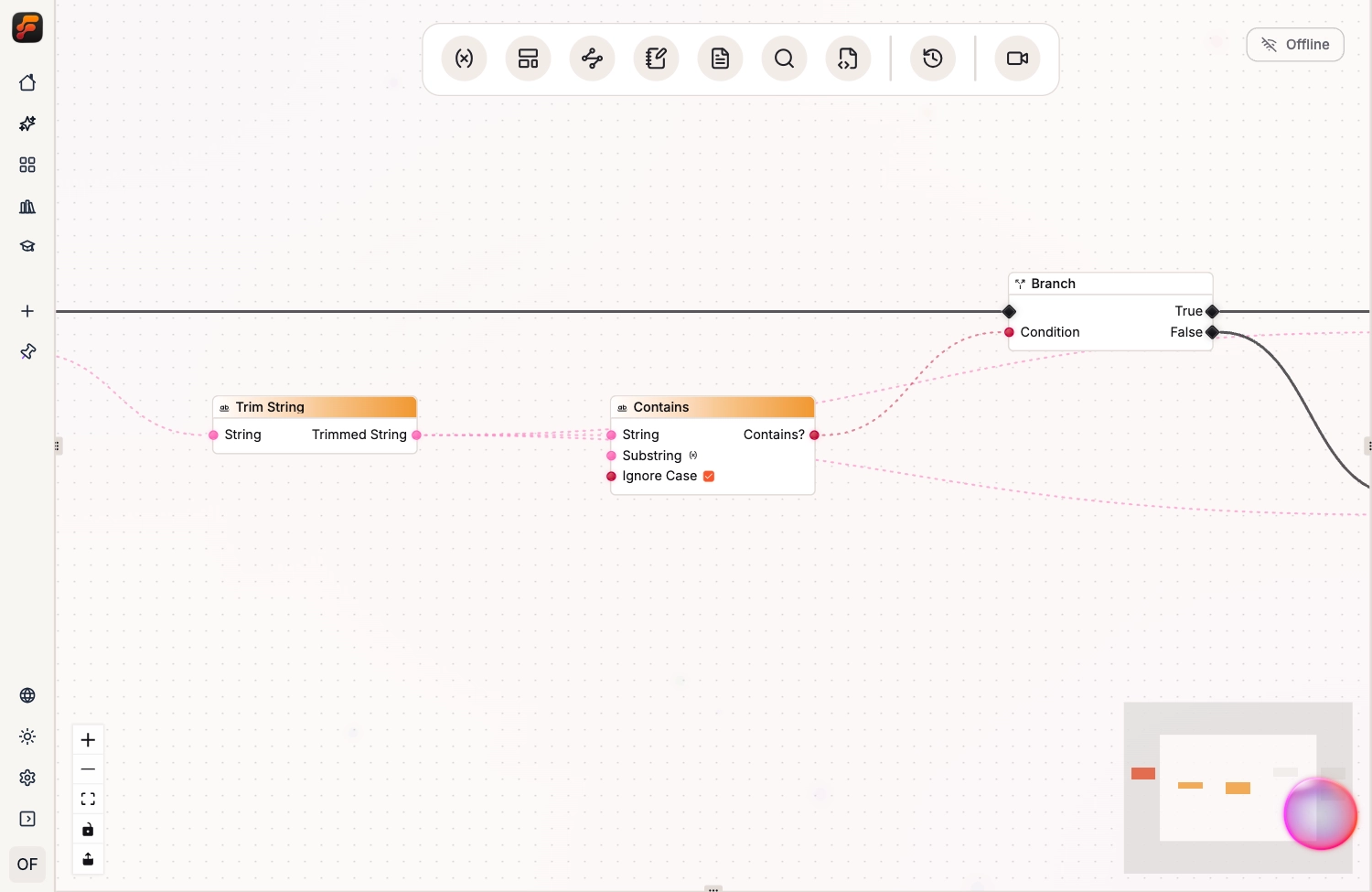

A focused crop of the first data path after FlowScript reconciliation and balanced auto-layout. Open the image to inspect the pins at full size.

The execution side is shorter. Connect the Generic Event execution output to the Branch input. Connect the Branch’s True output to Log Error and its False output to the Info log node.

Finally, connect the normalized string from Trim String to the Message input of both log nodes. Set the on-screen notification option to false for each. We want recorded run evidence, not a temporary toast.

The completed graph therefore has two kinds of wires:

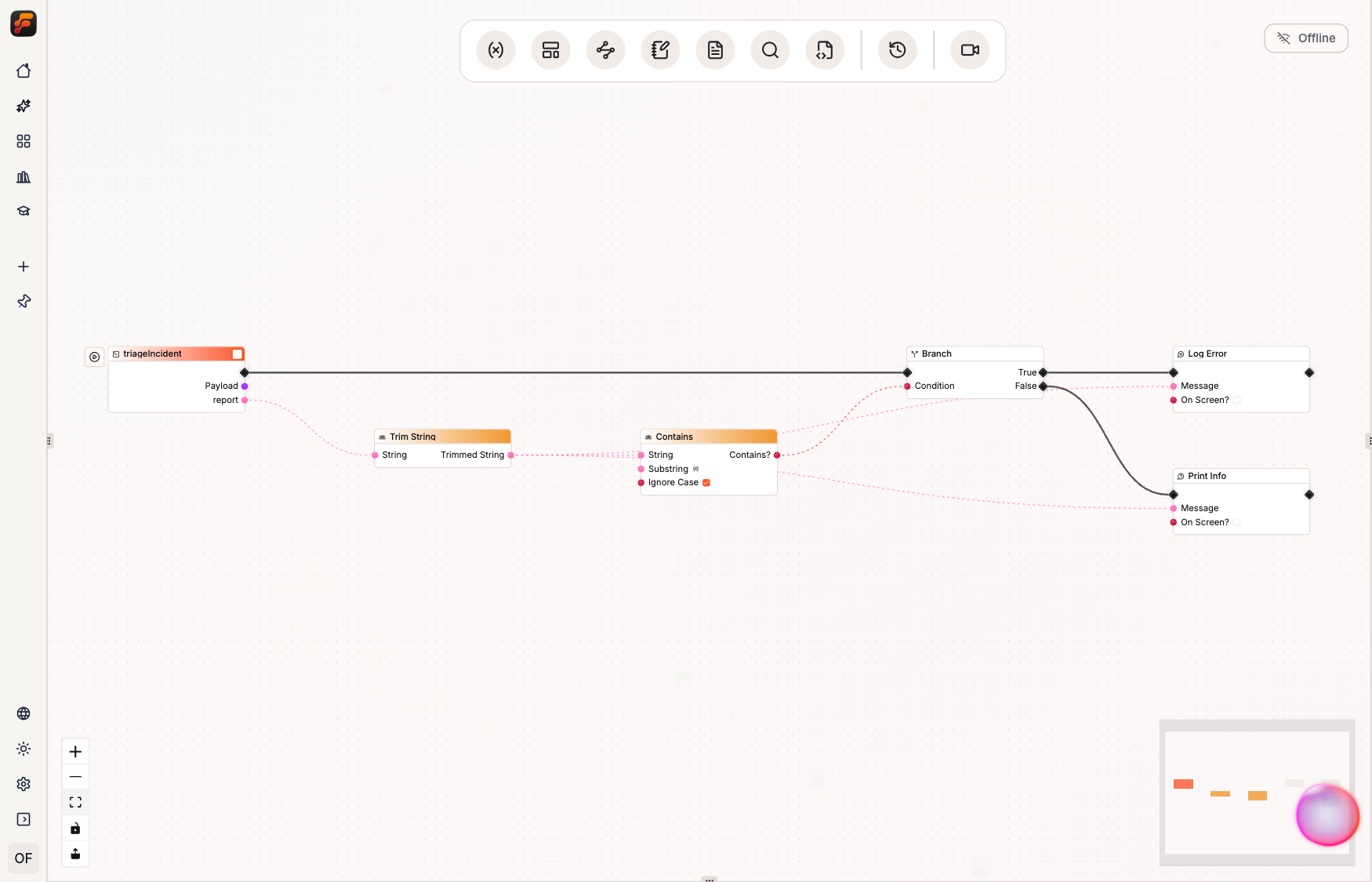

The complete six-node FlowScript rendered in Studio. Solid dark wires carry execution; colored dotted wires carry typed data.

Notice what is absent: Trim String and Contains do not need execution wires. They are pure operations. When Branch needs its condition, the runtime evaluates the data dependencies that produce it. The Branch and log nodes are impure because their position in the execution path matters.

This separation answers two different questions. Data wires answer, “Where does this value come from?” Execution wires answer, “When does this work happen?” A graph that mixes those questions into one kind of connection becomes difficult to reason about as soon as side effects appear.

At this point, pause before opening the text view. Read the graph from left to right and say the rule aloud:

When an incident arrives, trim its report. If the normalized report contains “production is on hold,” log an error. Otherwise, log information.

If the visible graph does not communicate that sentence, improve its placement before moving on. Correct wiring is necessary; readable organization is part of the result.

4.3 Read the same Flow as source

Open the FlowScript view of the Board. Ignoring the identity anchors that the editor may append, the program is:

use log::*

eventsGeneric triageIncident(payload: Struct, report: string) {
    const normalized = report.trim()
    if (normalized.contains({ substring: "production is on hold", ignoreCase: true })) {
        error({ message: normalized, toast: false })
    } else {
        info({ message: normalized, toast: false })
    }
}

This is not a handwritten reimplementation of the graph. It is the textual representation of that Board.

The import at the top tells FlowScript that unqualified logging calls come from the log namespace:

use log::*

The renderer derives this glob import because the Flow uses multiple static calls from the same namespace. Fully qualified calls such as log::error(...) remain valid source, but the Board’s canonical rendering uses the import and the shorter aliases here.

The event declaration describes the entry node:

eventsGeneric triageIncident(payload: Struct, report: string) {

eventsGeneric identifies the Generic Event kind. triageIncident is the name we give this entry. payload: Struct is the event node’s built-in payload output. The additional parameter report: string is the typed output we defined for this Flow.

The next line contains one binding and one method-shaped node call:

const normalized = report.trim()

report.trim() represents the Trim String node. FlowScript lets nodes with a receiver pin use method syntax, so the value on the left of the dot supplies the node’s String input. The default output becomes normalized.

This does not create a hidden JavaScript string operation. It still names a catalog node, and that node remains visible on the Board.

The condition contains two more operations:

if (normalized.contains({ substring: "production is on hold", ignoreCase: true })) {

normalized.contains(...) is the Contains node. The receiver supplies its String input. The object supplies the remaining pins: the substring and the case-comparison option. Its boolean output supplies the Branch condition.

The if block is the Branch node rendered as familiar control flow. The first block corresponds to its True execution output; the else block corresponds to False.

Finally, each statement inside those blocks is an impure logging node:

error({ message: normalized, toast: false })
info({ message: normalized, toast: false })

The preceding use log::* makes these aliases available without a prefix. In the fully qualified spelling, :: separates the log namespace from the node alias. A dot means field or method access on a value; :: addresses an operation through its namespace. The object keys are the node’s input pins.

Count the graph behind the source: one event, one trim, one contains check, one branch, and two logs. Six nodes.

The editable view may include trailing comments such as //@n:.... Those are identity anchors. They let reconciliation associate a statement with the node already on the Board. The book omits them for readability, but an author should preserve them while editing unless a deletion is intentional.

FlowScript accepts semicolons but does not require them. Canonical rendering omits them. That formatting choice does not change the Board.

4.4 Change text, watch the graph

Change the urgent phrase in the Contains call:

substring: "customer orders are blocked"

Do not apply the edit immediately. First inspect the pending reconciliation preview. The editor checks the source against the current Board and produces a command plan without mutating the persisted graph.

For this change, the important question is not the exact number of internal commands. That can vary as reconciliation and formatting evolve. The important shape is that an existing node is updated. The preview should not propose deleting the Flow or replacing all six nodes. If it does, stop and inspect the source and its anchors.

Apply the edit to the Board. Then locate the Contains node and inspect its configured substring. The graph should now express the new rule while its structure and node identities remain intact.

This is a small edit, but it demonstrates the essential contract. You changed code, yet the result was not a separate textual program. FlowScript was parsed and reconciled into a Board change.

Use the editor’s source-to-node navigation affordance where it is available in your release. The release verification pass for this chapter should capture both the pending command plan and the changed node on the canvas.

Once you have seen the round trip, restore the original phrase and apply it again. The remaining examples use production is on hold.

4.5 Change the graph, watch the text

Now travel in the other direction.

On the urgent execution path, insert a Log Warning node before Log Error. Give it the normalized report as its message and keep its on-screen notification disabled. The True path should enter Log Warning and then continue to Log Error.

After the Board change has been saved, re-render FlowScript from the Board. The urgent branch should be semantically equivalent to:

if (normalized.contains({ substring: "production is on hold", ignoreCase: true })) {
    warn({ message: normalized, toast: false })
    error({ message: normalized, toast: false })
} else {
    info({ message: normalized, toast: false })
}

The final rendered text may include anchors and release-specific canonical formatting. Verify the actual output rather than copying those details from this draft.

This direction of the loop is just as important as the first. The visual edit did not create an annotation beside the source. It changed the Board, and the source now describes that change.

Avoid editing stale text while changing the canvas. The current editor guards against applying a draft when the Board has changed behind it; nevertheless, the simplest working habit is to finish or reset a text edit before switching surfaces, then re-render from the Board after a visual change.

For the chapter fixture, remove the temporary warning again and confirm that the source has returned to the six-node baseline. The warning was useful for proving the reverse trip. It is not part of our classification contract.

4.6 Break it on purpose

Run the Flow first with the normal report:

{
  "report": "Database latency is elevated, but production continues."
}

Select the resulting run and inspect its logs. The rule predicts an Info message containing the normalized report. The Error log node should not execute.

Next, run the urgent case:

{
  "report": "  PRODUCTION IS ON HOLD after an interface timeout.  "
}

The rule predicts that Trim String removes the surrounding spaces, Contains returns true despite the capitalization, and the Branch follows its True output. The resulting message should be recorded at Error level without an on-screen toast.

Again, this is not a thrown failure. The Log Error node completed the action we asked it to perform. Some run lists classify or color a run from its highest log level, while remote execution keeps completion status and log severity as separate fields. An intentional Error log can therefore look similar to a failed run at a glance. Read the node-attributed evidence before deciding what happened.

Now try the malformed payload:

{
  "report": 42
}

This is where the chapter must follow evidence instead of aspiration.

Before final publication, run this case through the same invocation surface used in the screenshots and record the actual boundary:

• If the interface refuses the payload, document the typed input rejection.
• If an App Event adapter rejects it, document that the Board did not start.
• If it reaches the Board and a string operation fails, record the failing node and its error.
• If the value is coerced or defaulted, document that behavior and decide whether the fixture needs a different deliberately failing input.

Do not claim that Trim String failed merely because it is the first string node. A platform boundary that rejects the wrong type earlier may be the safer and more accurate result.

When a true node failure is available, open its run, find the relevant log entry, and use the node-navigation action to return to the responsible block. Capture the input, Flow version, run identifier, log level, message, and focused node. Those details turn “it failed somewhere” into reproducible evidence.

This is the flight-recorder role of the run log. A useful trace preserves more than a sentence saying that execution stopped. It relates the evidence to a run, a version, and a node identity. An unfamiliar responder can start at the operation involved and trace its incoming values and surrounding execution path.

Our six-node Flow is too small to make that navigation feel necessary. That is precisely why it is worth learning here. In a Board with hundreds of nodes, beginning at the responsible operation rather than at the application boundary can save the first hour of an investigation.

4.7 Save the first known-good version

Return the Board to the six-node baseline and rerun the verified test matrix for the release you are using. At minimum, preserve the normal and urgent runs. Add the malformed-input case once its expected boundary has been established and documented.

Then create an immutable Flow version. Use the semantic increment that matches your release policy; for a compatible correction to an existing Flow, that would normally be a Patch version. The current draft remains editable, while the numbered version becomes a read-only snapshot.

Record four things with the snapshot:

• the canonical FlowScript rendered from the Board;
• the test inputs and their expected log levels;
• the Flow-Like release against which they were run; and
• the observed malformed-input boundary.

A production-facing App Event can later target that numbered version instead of Latest. New work can continue on the draft without silently changing the entry point used by callers. When the next version is ready, test it and deliberately move the Event.

We have now completed the full loop.

We built a graph and read it as source. We changed the source and updated an existing node. We changed the graph and recovered the corresponding source. We ran deterministic cases, kept application-level severity distinct from runtime failure, and preserved a tested snapshot.

Most importantly, there was never a visual workflow and a separate codebase to keep in sync.

There was one Flow, seen from two sides.
