12. Functions, Layers, Handlers, and Caching

The first copy of a useful node network feels harmless. The second creates a maintenance question: are these two blocks allowed to evolve independently, or are they supposed to remain the same?

If the answer is “they should stay the same,” they should not be copies. They should be a function.

That is the founder’s practical boundary between visual organization and reusable logic:

When you copy a layer because you intend to reuse the same logic, turn it into a function.

There is a second signal. Flow-Like can automatically reuse a function’s previous result through an explicit cache policy. Ordinary visual grouping cannot carry that callable result contract.

This chapter separates four ideas that can look similar on a canvas:

Construct	What it gives the Flow
Layer	A nested visual region that keeps one graph readable
Function	A reusable typed boundary inside the same Flow
Handler/Event	A triggerable boundary that a caller or agent can invoke
Function cache	An authored promise that a previous output may replace the entire call

Release check: FlowScript functions currently become Function layers with typed boundary pins. Function purity is inferred structurally from their contents; node purity itself is a promise made by each node designer through the presence or absence of Execution pins. Every user function with at least one parameter can be called as a method on its first argument. @cache is explicit and may currently be attached even to an impure function; a hit skips its whole body. Cache keys do not include the function body, package versions, global/runtime variables, model choice, or external state unless the author turns those dependencies into inputs. A plain Function layer cannot currently be registered directly as an agent tool: the author must provide a referenceable Event handler. The planned thin automatic Function-to-Event shim is not yet implemented.

12.1 A function is a reusable layer contract

A FlowScript function gives a node network a name, typed inputs, and typed outputs:

function normalizeSystemId(systemId: string): (normalized: string) {
    return systemId.trim()
}

On the Board, this is not a hidden text routine. It becomes a Function layer. systemId is an input boundary pin, normalized is an output boundary pin, and every call becomes a Call Function node wired to that layer.

The signature is therefore part of the visible graph contract. Renaming, reordering, or changing the type of a parameter changes a pin. Changing a return changes what callers can consume. That is why a function is more than a tidier rectangle: it establishes one implementation behind all of its callers.

Use a function when at least one of these is true:

• two places need logic that must remain identical;
• the operation deserves a stable typed contract and a meaningful name;
• callers should not depend on the internal node arrangement;
• the result should be testable as a unit; or
• the author wants to apply an explicit cache policy.

Do not extract every cluster reflexively. Five nodes used once may be easier to understand inline, especially when their connections tell the story better than a generic helper name. A function is valuable when its boundary says something more useful than its hidden implementation.

Functions are reusable within their Flow. They are not automatically public APIs, scheduled entries, agent tools, or cross-Flow packages. Those require a triggerable Event boundary or a packaged node, depending on the intended reach.

12.2 Execution moves forward; pure data is pulled backward

Flow-Like has two complementary directions of evaluation:

Execution moves forward on the dark wire; required pure data is pulled through the colored dependency wires before the impure consumer runs.

Execution travels forward through Execution pins. Before an impure node runs, the runtime examines its data inputs. If a required value is produced by pure nodes, it walks backward through those dependencies, evaluates them in dependency order, and then runs the impure consumer.

This gives an apparently small rule a large consequence:

An unused pure value performs no work.

If the output of systemId.trim() reaches no return pin and no executing consumer, the runtime has no reason to evaluate it. By contrast, an impure call on the execution chain runs even when nobody uses its data output. Its position on that chain is the reason it exists.

Who decides purity?

The node designer does. At runtime, the structural test is simple:

Node shape	Runtime classification
No Execution pins	Pure, evaluated when data is demanded
One or more Execution pins	Impure, scheduled through execution flow

That structure is a promise, not a proof. The engine does not inspect a node’s Rust or WASM implementation and mathematically establish that it is deterministic or side-effect-free. A node author who hides a network request or mutation behind a pure data pin breaks the execution model.

The design rule is stricter than the shortest academic definition:

• deterministic, inexpensive transformations are good pure nodes;
• operations that may change state are impure; and
• expensive work should usually be impure even when it is deterministic, so its cost and schedule remain visible.

FlowScript derives a Function layer’s execution shape from its body. An impure node call, a Board variable write, another impure function, a branch, or a loop gives the Function execution boundary pins. A function made only from pure data dependencies and declared returns can remain pull evaluated.

This means “deterministic” and “structurally pure” are related but not identical. The cached resolveSystem example later in this chapter contains an if. Its result is deterministic and it has no side effects, but the current planner represents the branch with execution flow, so the Function is structurally impure.

The Unreal Engine comparison

The model is intentionally familiar to Blueprint authors. Epic’s official Functions documentation defines a Blueprint Pure function by its promise not to modify state. Impure functions are placed on explicit execution wires; pure functions are evaluated when a connected consumer needs their data. Epic also warns in its UFunctions documentation that pure functions do not cache their results, making non-trivial work a performance concern.

Flow-Like shares the split between explicit execution and demand-driven data. Its recommended node design adds an operational concern: if a calculation is expensive enough that operators should see when and where it runs, making it impure can be the honest choice even when it does not mutate state.

Pure is therefore not a synonym for cached. Pure answers when is this data needed? Caching answers may an older result replace this call? They are separate decisions.

12.3 Every user function has a receiver

Every user-defined function with at least one parameter can be written as a method on its first argument:

const normalized = normalizeSystemId(systemId)
const sameValue = systemId.normalizeSystemId()

Both forms call the same Function layer. In the method form, systemId fills the first parameter. The remaining arguments follow after it:

const { team, runbook } = normalized.resolveSystem(directoryRevision)

This is universal for user functions because the first parameter already supplies an unambiguous receiver contract. The editor can offer compatible functions after receiver. by checking that parameter’s type.

Method syntax does not mean that the function belongs to an object, mutates the receiver, or uses a different runtime mechanism. It is readable call sugar over the same pins. Current Board-to-source projection may normalize an authored method call back to a flat function call, so the spelling is not yet a round-trip identity guarantee.

Catalog nodes have a related but distinct rule. Their node designer selects a receiver pin in the catalog metadata, with a limited first-data-input fallback for compatible namespaces. Not every catalog node automatically becomes a method merely because it has an input.

12.4 Functions are reusable; Events are triggerable

A function has a typed call boundary, but it has no independent runtime entry. An agent cannot trigger a Function layer merely by knowing its name. It needs an Event entry.

The design rule is straightforward: any suitable Event should be explicitly registerable as a tool. When reusable logic already lives in a function, a thin Event shim adapts the function to that trigger boundary:

eventsGeneric configureIncidentAgent(payload: Struct, agent: Struct, directoryRevision: string) {
    const configuredAgent = agent::registerFunctionTools({
        agentIn: agent,
        tools: [resolveSystemTool],
    })
    eventsGeneric resolveSystemTool(systemId: string) {
        const normalized = systemId.normalizeSystemId()
        const { team, runbook } = normalized.resolveSystem(directoryRevision)
        return { team: team, runbook: runbook }
    }
    return configuredAgent
}

tools: [resolveSystemTool] is explicit reference metadata. It records the concrete handler entry the agent may invoke; it is not an ordinary array passed through a data pin. The nested handler is an independent Event entry even though the source places it beside the registration that owns it. Its parameters become the tool’s inferred input properties, and its return becomes the tool result.

That inference is not yet a complete external contract. The current model-facing schema describes the properties but does not mark them as required, and it does not advertise a declared output schema. The handler remains responsible for validating the values it receives.

The current implementation requires this handler to be written. Registering resolveSystem directly is rejected because a Function layer has no trigger node. A future convenience can create the slim shim automatically, but it must still leave the Event and its registration visible.

“Any Event” also needs one release-specific qualification. Current tool registration accepts Event entries marked as referenceable—such as the supported Simple, Generic, Chat, and Widget Action entries—not every arbitrary start node. Registering an Event for one agent does not expose a public API; Chapter 13 covers external App Event registration separately.

Tool schemas are inferred, but policy is still authored. Current function references do not carry their own confirmation, allowed-caller, cost-limit, or permission object. If an operation needs human confirmation or a domain authorization check, put that logic inside or immediately around the handler. Package capabilities and the enclosing runtime permissions still apply, but the Event shim does not invent additional approval on its own.

12.5 @cache is an authored promise

Flow-Like never silently decides that a function should be cached. The author opts in visibly:

@cache({ namespace: "incident-system-directory-v1", ttlSeconds: 600 })
function resolveSystem(systemId: string, directoryRevision: string): (team: string, runbook: string) {
    let team = "platform-on-call"
    let runbook = "runbooks/general.md"
    if (systemId == "payments") {
        team = "payments-on-call"
        runbook = "runbooks/payments.md"
    }
    return team, runbook
}

A cache hit replaces the complete call. The runtime restores the named data outputs, activates the continuation, and runs none of the nodes inside the function. No log, write, API call, ticket, or other side effect in that body happens on a hit.

That leads to the safe contract:

Cache a function only when the same declared inputs may legitimately reuse the same outputs for the chosen freshness window—and skipping the entire body is correct.

The engine currently trusts the author. It permits caching a structurally impure function and the UI can warn about the risk, but Apply does not reject it. This can be valid for an expensive, execution-driven read or deterministic branch. It is not valid for ticket creation, writes, notifications, auditing, or any other behavior that must occur for every call.

What forms the key today

The effective function-cache identity is:

App + scope + user when user-scoped + namespace
    + hash(Function layer ID + successfully evaluated input names and values)

Object keys are canonicalized and arrays retain their order. The stable Function layer ID prevents two functions in the same namespace from reading each other’s entries.

The following are not included automatically:

• the function body or output contract;
• catalog, package, or WASM-node versions;
• Flow globals and runtime variables;
• secrets or provider profiles;
• model selection;
• deployment configuration; and
• database, file, or external API state.

If one of those changes the legitimate result, make its identity or revision a declared input, or invalidate/version the namespace when it changes. The directoryRevision parameter in the example exists for exactly this reason.

FlowScript’s bare @cache currently means namespace global, a five-minute lifetime, and App scope. The visual Function editor starts from different defaults today, including no expiry. Until those surfaces converge, this book writes the settings-object form with an explicit namespace and TTL. App scope is the canonical FlowScript default and is therefore omitted here. ttlSeconds: 0 means no expiry and should be reserved for entries with an explicit invalidation and cleanup plan.

Cache failure is designed to degrade into ordinary execution: an unavailable backend or unusable entry produces a warning and the function runs. A write is best-effort and does not turn a successful Flow into a failure. Concurrent identical misses are not combined into one call, so a cache is neither a distributed lock nor an exactly-once mechanism.

12.6 Invalidate after the source of truth changes

Namespaces give related entries one invalidation boundary. Open the same scope and namespace, then remove the group:

eventsGeneric invalidateSystemDirectory(payload: Struct, directoryRevision: string) {
    const directoryCache = data::cache::open({
        scope: "app",
        namespace: "incident-system-directory-v1",
    })
    const deleted = directoryCache.invalidateNamespace()
    log::info({
        message: `Revision ${directoryRevision}: invalidated ${deleted} resolution(s)`,
        toast: false,
    })
    return deleted
}

This Event belongs at the successful end of the authoritative system-directory update—not at the end of every read. The safe order is:

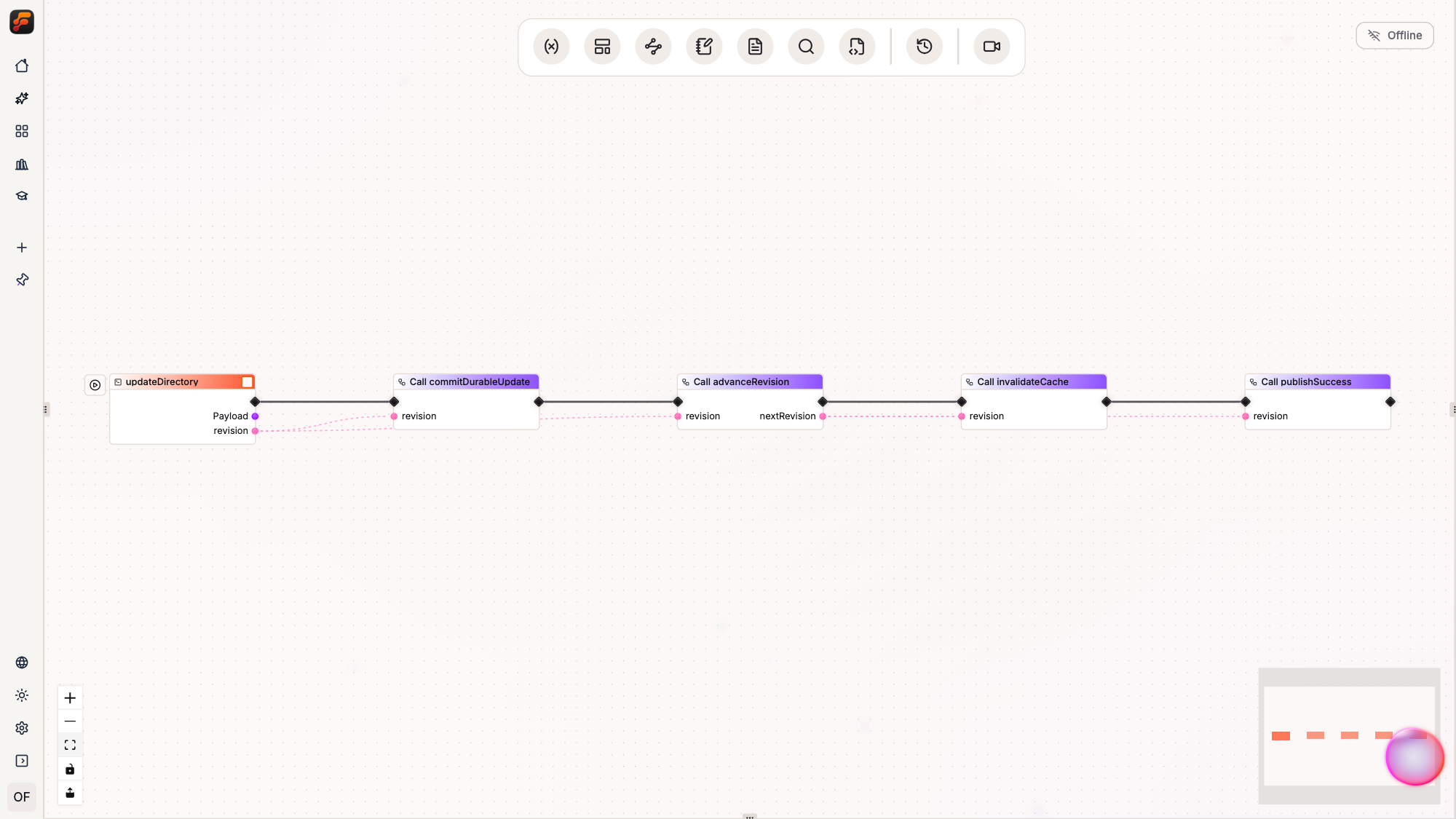

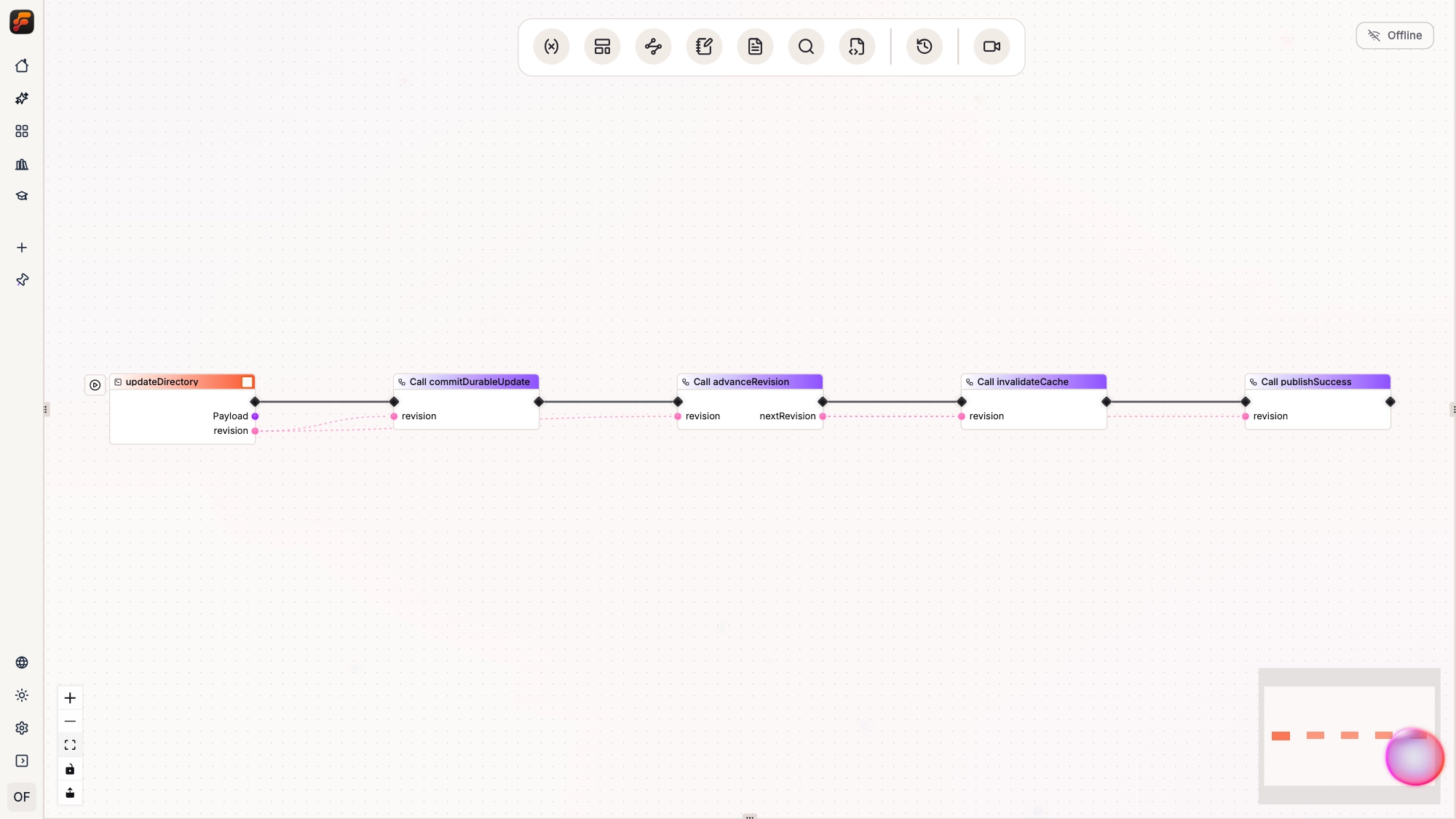

This illustrative call topology makes the required order explicit. Production function bodies must implement the durable update, revision, invalidation, and publication contracts they name.

There is still a concurrency edge. A lookup that missed before invalidation can finish afterward and write an old result back into the namespace. Passing directoryRevision into the cached function prevents new callers from using that old key. A versioned namespace can provide another clean boundary, although changing a namespace makes old entries unreachable rather than deleting them; TTL or explicit cleanup must eventually remove them.

Changing function code, return names, package versions, model choice, or configuration does not automatically clear old results. That responsibility belongs to the author because only the author knows whether the change alters the meaning of a cached answer.

12.7 Use layers for readability, functions for sameness

An ordinary layer collapses part of one graph into a named nested view. It is valuable when the canvas is crowded, when a section deserves a high-level label, or when a placeholder should define the intended shape before its implementation exists.

A Function layer changes the relationship:

Situation	Prefer
One inline section is visually noisy	Ordinary layer
A placeholder sketches work to implement later	Ordinary layer
Copies are intended to remain the same	Function
Several callers need one typed contract	Function
Results should use automatic function caching	Function
A caller or agent must trigger the logic independently	Event, usually wrapping a function

Studio can convert a suitable collapsed layer into a Function while preserving its inner nodes and typed boundary pins, replacing the inline occurrence with a Call Function node. Execution-bearing Functions need one execution entry; pure Functions need none.

The key smell is not visual duplication by itself. Two similar blocks can represent intentionally different domain policies. The smell is copy-and-paste performed with the expectation that future changes must be repeated. That expectation is already a function contract, whether or not the author has named it yet.

12.8 Read the complete function and cache example

The canonical Chapter 12 fixture combines the chapter’s boundaries:

function normalizeSystemId(systemId: string): (normalized: string) {
    return systemId.trim()
}

@cache({ namespace: "incident-system-directory-v1", ttlSeconds: 600 })
function resolveSystem(systemId: string, directoryRevision: string): (team: string, runbook: string) {
    let team = "platform-on-call"
    let runbook = "runbooks/general.md"
    if (systemId == "payments") {
        team = "payments-on-call"
        runbook = "runbooks/payments.md"
    }
    return team, runbook
}

normalizeSystemId is pure and runs only when a consumer needs normalized. resolveSystem is structurally impure in the fixture because it uses a visible if, but it is safe to cache: its body has no side effects, its output is determined by declared inputs, and the revision expresses the freshness dependency.

The small in-source mapping stands in for the governed system-directory lookup a production App would perform. The complete fixture also calls the Functions directly, adapts them through an explicit agent Event, and supplies a separate namespace-invalidation Event for the end of the directory’s durable update path.

This is the larger pattern: name logic when sameness matters, expose it through an Event when an independent caller needs it, and cache it only when replacing the entire call is an honest thing to do.
