8. Calling the Node Library

The useful size of a programming language is not measured only by how many keywords it has. It is measured by how much real work we can express without leaving its model.

FlowScript keeps its own syntax deliberately small and puts most capabilities in the node catalog. Text operations, HTTP requests, files, databases, document processing, models, automation, UI, and many other domains arrive as typed operations. Built-in nodes and nodes from packages use the same call surface. In Studio they are boxes with pins. In FlowScript they look like functions and methods. At runtime they remain the same named operations.

That is why the catalog is best understood as FlowScript’s expansive standard library, with one important qualification: it is not a pile of arbitrary functions linked invisibly into a process. Every call resolves to a catalog declaration and therefore to a node the Board, runtime, and run evidence can identify.

The practical goal of this chapter is not to memorize that library. It is to learn how to ask it a precise question: given this value and this intent, which compatible node can do the next piece of work?

Release check: Qualified calls, all four use forms, receiver dispatch, name-based output destructuring, generated declarations, editor completion, and context-sensitive Studio search are implemented in the current repository. Safety-, trust-, permission-, performance-, and cost-aware result ranking is product direction, not current catalog ordering. Versioned node migration also has a gap described in Section 8.5: today’s general schema synchronizer can remove stale pins or detach changed-type pins without retaining an author-facing node error.

8.1 Qualified calls

The most reliable way to read a node call is the fully qualified form:

namespace::operation({ pinName: value })

The path identifies a catalog namespace and member. The object maps values to input pins. Consider the first operation in our Incident Triage Flow:

const normalized = string::trim({ string: report })

string is the namespace, trim is the FlowScript alias of the Trim String node, and string in the argument object is that node’s input pin. normalized receives the node’s sole data output. Nothing in this expression executes an arbitrary function named trim; reconciliation looks up the live catalog declaration, plans the node, and wires report to its declared input.

Catalog pins often use snake_case internally. Their FlowScript names are rendered in camel case, so a pin called ignore_case appears as ignoreCase. This is a stable textual projection of the pin name, not a new free-form parameter. Completion inserts the correct spelling, and Apply can report an unknown argument, a missing required input, a duplicated input, or a call that does not match a declaration.

Named arguments are worth keeping as the canonical mental model even where compact positional forms are accepted. They make the graph mapping visible in the source:

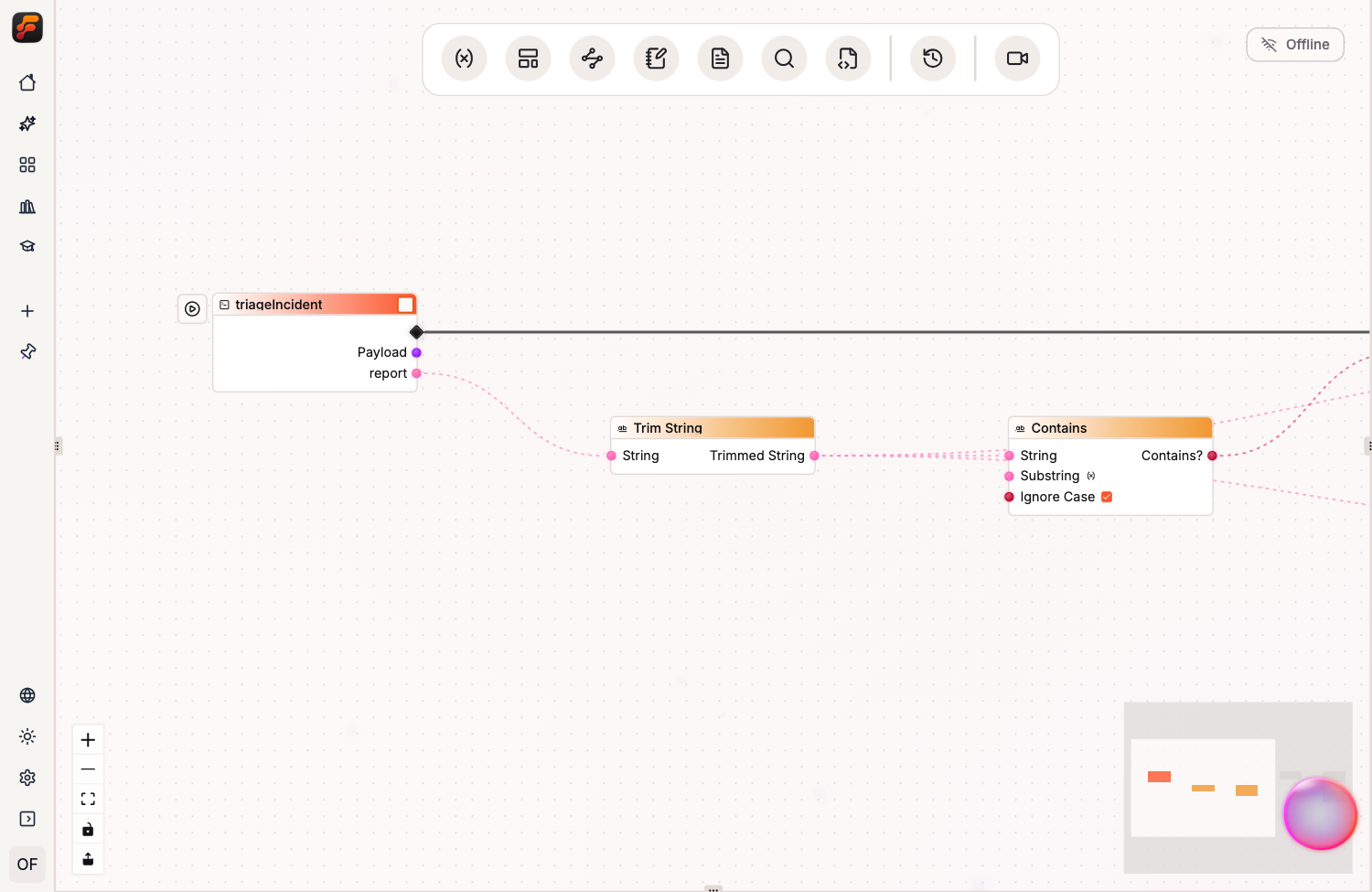

The named string argument becomes the visible input pin on Trim String; its result remains an ordinary typed output wire.

They also make reviews resilient to a long signature. Someone reading an HTTP call should not have to remember whether the fourth Boolean controls redirects, certificate validation, or retries. The pin name carries that meaning beside the value.

An input with a catalog default is optional in the generated declaration and may be omitted. A required input has to be provided by a literal, an expression, or a wire-producing binding. The declaration is the authority; TypeScript familiarity is not permission to invent an option that a node does not expose.

:: is significant. It joins namespace segments, as in ai::ml::read. A dot means something is being selected from or invoked on a value. The reconciler currently recognizes some mistaken string.trim(...) namespace calls and suggests string::trim(...), but relying on that correction would blur two different ideas. Write :: for a namespace and . for a receiver or output.

Here is the chapter’s Incident example. It intentionally uses several equivalent call surfaces so we can examine them in the following sections:

use log::{ info, warn }
use string as text

eventsGeneric catalogIncident(payload: Struct, report: string) {
    const normalized = text::trim({ string: report })
    const { before: system, after: detail, found } = normalized.splitOnce({ separator: ":", fromEnd: false })
    if (found) {
        info({ message: detail, toast: false })
    } else {
        warn({ message: normalized, toast: false })
    }
}

The Flow receives a report such as orders: production is on hold, trims it, attempts to split a system name from the detail, and records whether that structure was found. The example adds no hidden parser routine. Trim, Split Once, Branch, and the log operations remain visible nodes.

A qualified call does not install a package, grant a permission, or make an unavailable node exist. It can only resolve against the catalog available to the App and release. That boundary is essential: names make capabilities addressable; App packages and governance decide which capabilities are present. If the relevant package is absent, Apply reports an unknown namespace, member, or catalog declaration instead of placing a pretend node.

8.2 Imports and aliases

Repeating long namespace paths can obscure the actual logic. Top-level use declarations change how names are resolved within one FlowScript document. They do not change the nodes placed on the Board.

FlowScript supports four forms:

use ai::response
use string::*
use string as text
use log::{ info, warn }

Each form opens a different scope:

Form	Meaning	Example call
use ai::response	Bring the final namespace segment into scope	response::make({ ... })
use string::*	Make every member of one namespace callable bare	trim({ string: report })
use string as text	Give the namespace a local alias	text::trim({ string: report })
use log::{ info, warn }	Make only selected members callable bare	warn({ message: report })

Our example aliases string as text and imports two logging members. The alias is local vocabulary, not a fork of the catalog. text::trim and string::trim still resolve to the same node type. Likewise, bare warn(...) is not a user-defined function merely because its namespace is absent from the line.

Imports are intentionally checked. An unknown namespace, a nonexistent member, an alias that is a FlowScript keyword, or selected members that collide can produce a diagnostic. A valid but unused import is currently reported as a non-blocking correction. If two opened namespaces export the same member, reconciliation first considers whether the supplied argument shape identifies one candidate. When it cannot decide safely, it asks for a qualified spelling rather than choosing by catalog order.

That last rule matters in a large library. Both arrays and strings can reasonably offer an operation named contains. A bare call may be clear when its named inputs fit only one declaration. string::contains(...) is the unambiguous escape whenever the context is not enough. User-declared functions also own their names and can shadow bare catalog members or method aliases; the diagnostic explains the conflict instead of silently changing which operation runs.

Imports are not durable Board entities. The renderer derives them again from the calls it sees. Current lowering opens a namespace with use ns::* when that namespace has at least two static call sites and none of its used member names collide with a Function, another placed node’s flat name, or a member already opened from another namespace. Method-form calls do not count as static sites. A single call normally stays qualified.

As a result, source may re-render with a different but equivalent import style after Apply. An author-written alias such as text is useful while editing, but the Board stores the resolved node identity, not the alias. The canonical renderer may later choose string::trim or derive use string::*. That is healthy normalization, provided the resolved graph is unchanged.

The simplest style rule is therefore:

• begin with qualified calls when learning or resolving ambiguity;
• accept autocomplete’s import edit when a repeated namespace is making the code noisy; and
• let canonical rendering decide whether the final Board still earns that import.

8.3 Method form

Some catalog nodes designate one data input as a receiver. Their generated declaration contains a this: parameter. Split Once currently declares its contract in this shape:

function splitOnce(
    this: string,
    { string: string, separator: string, fromEnd?: bool }
): { before: string, after: string, found: bool };

The this: string marker says the input pin named string may be supplied by the value to the left of a dot. These two calls resolve to the same node:

const split = string::splitOnce({
    string: normalized,
    separator: ":",
    fromEnd: false,
})

const splitAgain = normalized.splitOnce({
    separator: ":",
    fromEnd: false,
})

In method form, the receiver pin is already bound. Supplying string: normalized again is an error because it would give one pin two sources. When one required input remains, it can be positional: normalized.splitOnce(":"). With several inputs or meaningful options, the named object remains clearer.

This is not JavaScript prototype extension. A string does not acquire arbitrary methods, and splitOnce is not implementation hidden inside a string object. The call still becomes a Split Once node with an ordinary String input wire. Its duration, failure, permissions, and outputs stay attributable to that node.

The receiver contract also powers discovery. After a value known to be string, the current FlowScript editor offers methods whose receiver class is string, plus genuinely universal operations. After an array it offers array operations; after a titled Struct it can include methods for that schema and general Struct methods. Completion uses the active catalog, so nodes from available packages can participate in the same table.

If the receiver type is unknown, completion becomes broader and method resolution may have several candidates. An any value followed by .contains(...) could mean a string operation, an array operation, or another package declaration. FlowScript checks argument shape and opened namespaces where it can, but it will demand a qualified call when candidates remain tied. This is another place where the ergonomic cost of any appears without banning it.

Receiver metadata, rather than namespace spelling alone, decides whether a node has method form. A hash operation can therefore declare its text or byte input as a receiver even though its static name lives under hash. Conversely, a node author can opt out when a method spelling would be misleading. The generated declaration is where readers should verify the decision.

FlowScript Functions can also be invoked in a method-shaped style through their first parameter. That convenience is still a call to a visible Function layer, not permission to attach an opaque body to a value. We will return to Function contracts later; for catalog calls, the rule remains: the dot binds one declared input pin.

8.4 Single and multiple outputs

A node can have no data outputs, one data output, or several. FlowScript reflects each shape without turning output order into an invisible convention.

A node with one data output behaves like a value-producing function:

const normalized = text::trim({ string: report })

normalized refers to Trim’s only data output. An impure logging node has no data output, so it is normally written as a statement:

warn({ message: normalized, toast: false })

For several data outputs, select them by pin name. Object destructuring makes all selected wires clear at once:

const { before: system, after: detail, found } = normalized.splitOnce({
    separator: ":",
    fromEnd: false,
})

The left side before the colon is the output pin. The right side is the local binding. before becomes system, after becomes detail, and found keeps its own name. If a release changes an output name, reconciliation can identify the missing pin instead of quietly binding “the second output” to a different value.

The alternative is to retain a name for the call and select outputs as fields:

const split = normalized.splitOnce({ separator: ":", fromEnd: false })
if (split.found) {
    warn({ message: split.after, toast: false })
}

Here .found and .after select output pins on the Split Once node. This looks like object field access but resolves first against the node’s declared outputs. Chapter 9 will show how the same surface distinguishes an output selection from a Struct field read.

FlowScript recognizes a conventional default output when a node has several data outputs. Current resolution uses a sole output automatically and, among several outputs, looks for names such as result, value, output, out, or batch. That lets a call serve directly as a value while its other pins remain selectable. Split Once has before, after, and found, but no such default, so code that consumes one result must name it explicitly.

Array destructuring is intentionally unsupported:

// Rejected: output meaning must not depend on pin position.
const [system, detail, found] = normalized.splitOnce(":")

Pin order is presentation metadata that can change as a node evolves. Pin names are the contract. Object destructuring makes that contract survive reordering and makes the corresponding three data wires obvious on the Board.

The same principle applies when one output feeds several consumers. Binding a local does not copy the value into hidden language state; each use resolves to the relevant output pin and the graph records the fan-out. FlowScript gives that wire a readable name while preserving its source.

8.5 Generated .flow.d declarations

Editor assistance is only trustworthy when it describes the catalog that will reconcile and run the Flow. Flow-Like generates .flow.d files from node metadata to create that bridge.

A declaration for Contains looks like this, abbreviated only by removing prose lines:

declare namespace string {
    /**
     * @node string_contains @receiver string @alias stringContains
     * @param string — receiver in `x.contains(...)`
     * @param substring
     * @param ignoreCase (optional)
     * @returns contains
     */
    function contains(
        this: string,
        { string: string, substring: string, ignoreCase?: bool }
    ): bool;
}

Each part has a job:

• the namespace and member provide the qualified spelling;
• the object lists the static call’s complete data-input shape;
• ? records an optional input;
• this: and @receiver identify method binding;
• the return type describes one output or an object of named outputs;
• @node preserves the internal catalog identity;
• @alias preserves the legacy flat camelCase spelling; and
• @impure, when present, records that the node has Execution pins.

Descriptions for the node, pins, and outputs become hover and declaration documentation. Struct schemas live in a generated sidecar so tooling can resolve nested fields without expanding large JSON Schemas into every human-readable signature. A names.json sidecar maps internal node types, qualified names, aliases, receiver pins, receiver classes, and categories.

The generated files are grouped both by top-level domain and, under a package index, by source package. That serves several consumers from one contract: Studio’s FlowScript editor builds completion, hover, signature help, and diagnostics from the active catalog; the VS Code extension can read declaration signatures; and FlowPilot can query the declaration index by intent or exact spelling before it writes source. Humans and AI therefore receive the same pin names instead of maintaining separate handwritten API summaries.

Generated does not mean timeless. A declaration snapshot must match the catalog available to the App. Package additions can introduce new nodes or collisions, and node upgrades can change pins. The syntax parser does not bind calls by reading .flow.d; the live catalog used during reconciliation is the semantic authority. Examples in this book therefore need catalog-aware reconciliation, not merely a successful parse.

The current Board model gives nodes a schema version for migration. When the catalog version is newer, general synchronization matches pins by name. It preserves pin IDs and wires when the declared base type and collection shape remain compatible, adds new pins, refreshes catalog-owned metadata, and gives dynamic nodes a chance to rebuild their derived pins. Widening a data pin to Generic also preserves an existing compatible wire.

The founder’s intended rule is stronger: migrate safely where possible; where safety cannot be proved, keep the node in place and annotate the problem for explicit repair. The node itself does remain on the Board today, but the general synchronizer does not yet fulfill the second half uniformly. On an ordinary node it removes a pin absent from the newer catalog. When a matched pin’s type or collection shape changes, it clears that pin’s connections and resets its default. It then clears the node error. Some schema-driven nodes already do better by retaining still-wired stale pins and placing an error on the node, but that behavior is not yet the universal upgrade contract.

There is one more useful preservation path today. If an entire package or node type is no longer available, Studio keeps the placed node on the Board and marks it with an unavailable-package warning. That protects the location and identity of the missing capability. It does not repair a pin-level breaking change inside a package that is still present, which is why the broader migration contract still matters.

This is a release gap, not wording to conceal. Until migration follows the intended rule everywhere, inspect package-update changes and the affected Boards before treating an upgrade as automatic. The durable product direction is that an unsafe change must become a visible repair, never a silently different program.

8.6 A large library without a memory test

The catalog should reward knowing the problem, not knowing 1,668 function names.

That number is a snapshot, not a product slogan: the checked-in generated declarations contain 1,668 node entries at repository revision 839395640. Packages and releases change it. More important than the count is that the library exposes enough type and intent metadata to make discovery contextual.

Studio offers two complementary paths. Opening the Actions catalog on an empty part of the canvas lets an author browse categories or search across node names, friendly names, categories, descriptions, and input and output pin names. Current text search supports prefixes and a small amount of fuzzy matching. Without a query, nodes and categories are primarily ordered by name.

Dragging a wire from a pin into empty space adds the stronger clue: its Context Sensitive mode is enabled by default. The catalog keeps operations that have an opposite-direction pin compatible with the value being carried. Search then narrows that compatible set, and choosing a node connects the matching pin. An author holding a String output does not need to browse every database writer, event source, and image operation before finding Trim or Split Once.

Compatibility here is substantive. The current filter considers direction, data type, collection shape, Generic specialization, schema enforcement, and the special schema-adopting Struct boundaries. The actual connection still passes through Board validation. Turning Context Sensitive off is possible when deliberately exploring the whole catalog, but the default workflow makes the typed path the shortest one.

FlowScript applies the same idea at the cursor. After normalized. the editor can infer a String receiver and show the node methods available for that class. After string:: it lists namespace members. At a bare call site it can offer an unopened member together with an edit that inserts or extends the appropriate use line. Hover reveals the signature; named-argument completion offers remaining pins; enum-constrained pins can offer their allowed values. FlowPilot’s declaration lookup supplies the AI-facing equivalent: search by intent, then return exact live signatures and call forms instead of asking the model to guess.

There is still room to improve the order of correct answers. Current visual search ranks textual relevance using boosted name, friendly-name, category, pin, and description fields. It does not currently rank compatible candidates by package trust, permission breadth, node quality scores, expected performance, or cost.

The desired direction is a policy-aware ranking after compatibility. If two nodes both solve the task, Flow-Like should be able to prefer the one that better fits the organization’s trust and permission rules and its performance and cost priorities. That ranking should explain itself—such as “built in, no network permission, lower expected cost”—and keep alternatives inspectable. The exact score direction, weighting, override policy, and provenance still need to be settled in the governance work; calling this current behavior would be premature.

Discovery therefore forms one continuous loop across the two views:

Start with a typed value or required pin
    → filter to compatible operations
    → search by the task you mean
    → inspect the declaration and tradeoffs
    → place or call the node
    → let reconciliation verify the exact contract

When no catalog operation expresses the intent, the answer is not an inline general-purpose code block. Compose lower-level visible nodes, or add a reviewed package whose node exposes a typed, capability-scoped contract. Later chapters will show how those WASM extensions enter an App. The important boundary is already visible: new power joins the same searchable catalog and the same graph, instead of opening an opaque hole in it.

The result is a language with a small surface and a large reach. Qualified calls give us an exact address. Imports remove repetition. Method form turns a known type into a discovery tool. Named outputs keep wires stable. Generated declarations let people, editors, and AI work from one node contract. We do not memorize the library; we navigate it through types and intent.

The next chapter looks beneath the most familiar-looking FlowScript expressions. Operators, templates, ternaries, and field access are convenient syntax, but each must still lower honestly to catalog operations and visible wiring.
