5. Nodes, Pins, Wires, and Execution

The six nodes in our Incident Triage Flow told two stories at once.

One story carried the report through Trim String and Contains into the Branch condition. The other started at the event, entered Branch, and continued through exactly one logging path. The first story answered, “Which values does this decision need?” The second answered, “Which consequential operation runs next?”

That separation is the foundation of Flow-Like’s execution model. It is also why a Flow can be compact in FlowScript without becoming opaque on the Board. An expression can describe a chain of value-producing nodes. Statement order and control blocks can describe execution wiring. The two views compress the graph differently, but they do not disagree about what runs.

This chapter gives us the vocabulary to reason about that contract before the language becomes more complex. When a Flow surprises us, we will read it twice: forward along execution and backward through data.

Release check: The static contracts in this chapter are verified against the current Board, node, pin, FlowScript reconciliation, and Rust executor implementations. Before publication, capture the exact pin shapes, wire styles, Handle Errors gesture, Sequence behavior, and Parallel Execution behavior in one named Flow-Like release. In particular, do not turn a pin’s configured default into a claim that every value observed during a run is persisted: runtime pin values are deliberately transient.

5.1 A node is a typed operation

A node is the smallest operation that Flow-Like’s authoring tools, runtime, and operators can all name.

For an author, a node might trim a string, send a request, write a record, call a model, or choose an execution path. In FlowScript, using one often looks like a normal function or method call:

const normalized = report.trim()

That familiar spelling is useful, but trim() has not become an invisible language primitive. It still resolves to a catalog node. Opening the same Flow in Studio reveals that operation, its pins, and its place in the graph.

The catalog identity matters because a node carries a contract beyond “some code runs here.” A node can declare:

• a machine-readable type name and a human-readable name, description, category, icon, and documentation;
• typed input and output pins, including defaults, schemas, and constraints;
• whether it takes part in execution or only produces values;
• schema/migration version and environment restrictions;
• OAuth requirements and, for external WASM nodes, requested capabilities; and
• optional privacy, security, performance, governance, reliability, and cost signals.

Not every node supplies every item, and metadata is not proof that an implementation is correct. It is nevertheless a substantial difference from an arbitrary block of inline code. The platform has a declared surface it can inspect before execution and an identity it can connect to run evidence afterward.

This is where constraints create useful leverage. A custom WASM node declares specific requested capabilities such as outbound networking, storage access, model access, or function calls instead of presenting itself as an undifferentiated package. A built-in or packaged node can also expose quality signals that contribute to reviewing the App as a whole. Later chapters will examine which boundaries enforce those declarations in each execution mode. For now, the important point is that the operation remains visible to the platform.

That visibility gives three people a shared unit of conversation:

• A domain expert can say, “This is the operation that sends the case to finance.”
• A developer can inspect the node’s input, output, implementation, and failure contract.
• An operator can begin with node-attributed log evidence instead of guessing which subsystem was active.

The node is therefore more than a box and more than a function call. It is a typed, inspectable building block whose visual identity, source representation, and runtime identity meet.

There is one terminology trap to avoid. Standard does not mean “built in,” and pure does not mean “small.” In the current runtime, a node is structurally pure when it has no Execution pins. A node with an Execution pin is impure: its position in control flow matters. Either kind may come from the standard catalog or an approved package.

5.2 Data pins carry values

Pins are a node’s public boundary. An input pin states what the operation accepts. An output pin states what it produces. A data wire connects an output to a compatible input and answers one question:

Where will this input get its value?

Direction is part of the contract. Two pins both labeled Message are not interchangeable if one accepts a value and the other produces one. Studio rejects input-to-input, output-to-output, and self-connections instead of asking the runtime to improvise.

Type is the next part. The current graph model distinguishes strings, integers, floats, booleans, dates, paths, bytes, structured values, generic values, and Execution. A separate value shape distinguishes a single value from an array, map, or set. Structured pins can carry a schema so that “object” does not have to mean “anything whatsoever.”

Our first Flow already used this system:

Studio exposes direction, type, and fan-out at the pins. Pink dotted wires carry strings; the darker Boolean output supplies Branch.Condition.

The connection from Contains to Branch is valid because the producer and consumer agree on a single Boolean. Connecting the same output directly to a String input should fail during authoring. The rejected wire is not inconvenience added by the editor; it is a data-shape bug found before a production run.

Generic pins provide controlled flexibility. A generic formatter may accept several concrete types. Once a concrete wire resolves that generic, connected pins must remain compatible with the resolved contract. This is type inference, not a suspension of type checking.

Pins can also carry options. A node author may define valid choices, a numeric range or step, a sensitive literal, or rules about enforcing schema and generic value shape. These options help Studio build a better editor for the operation, but the pin is still the underlying contract.

An input can receive its value in two ways:

1. A data wire supplies it from an upstream output.
2. With no upstream source, the node uses a configured default when its contract provides one.

This explains why execution can reach a node whose data wire is absent. Data does not schedule the node, and a missing connection does not automatically mean “do not run.” The node may receive its default; if the required value is absent or invalid, evaluation may fail at that node instead.

It is equally important to distinguish configuration from runtime state. The Board persists pin definitions, connections, and configured defaults. During one run, the executor attaches the values it evaluates to an in-memory pin representation. Those runtime values are explicitly excluded from pin serialization. A node-authored log may expose selected evidence, but we must not claim that every value flowing through every pin becomes permanent history.

That is a deliberate boundary. Persisting all values indiscriminately would be expensive and could copy sensitive business data into logs. What evidence a node emits is part of its contract, and what an organization permits in that evidence is part of its policy. We will develop that boundary in the observability chapters.

For debugging, the practical rule is to work backward. Begin at a surprising input and follow its data wire to the producer. Repeat until the first surprising value or missing source appears. Looking only at the execution path cannot answer where the value came from.

5.3 Execution pins carry order

Execution pins do not carry application data. They carry permission to proceed.

An execution input answers, “What must activate before this node runs?” An execution output answers, “Which path becomes eligible after this node completes or chooses an outcome?” In the current Studio conventions, these are the diamond pins joined by the execution path. Their exact color and styling are presentation; their Execution type is the durable rule.

Return to the Incident Triage graph:

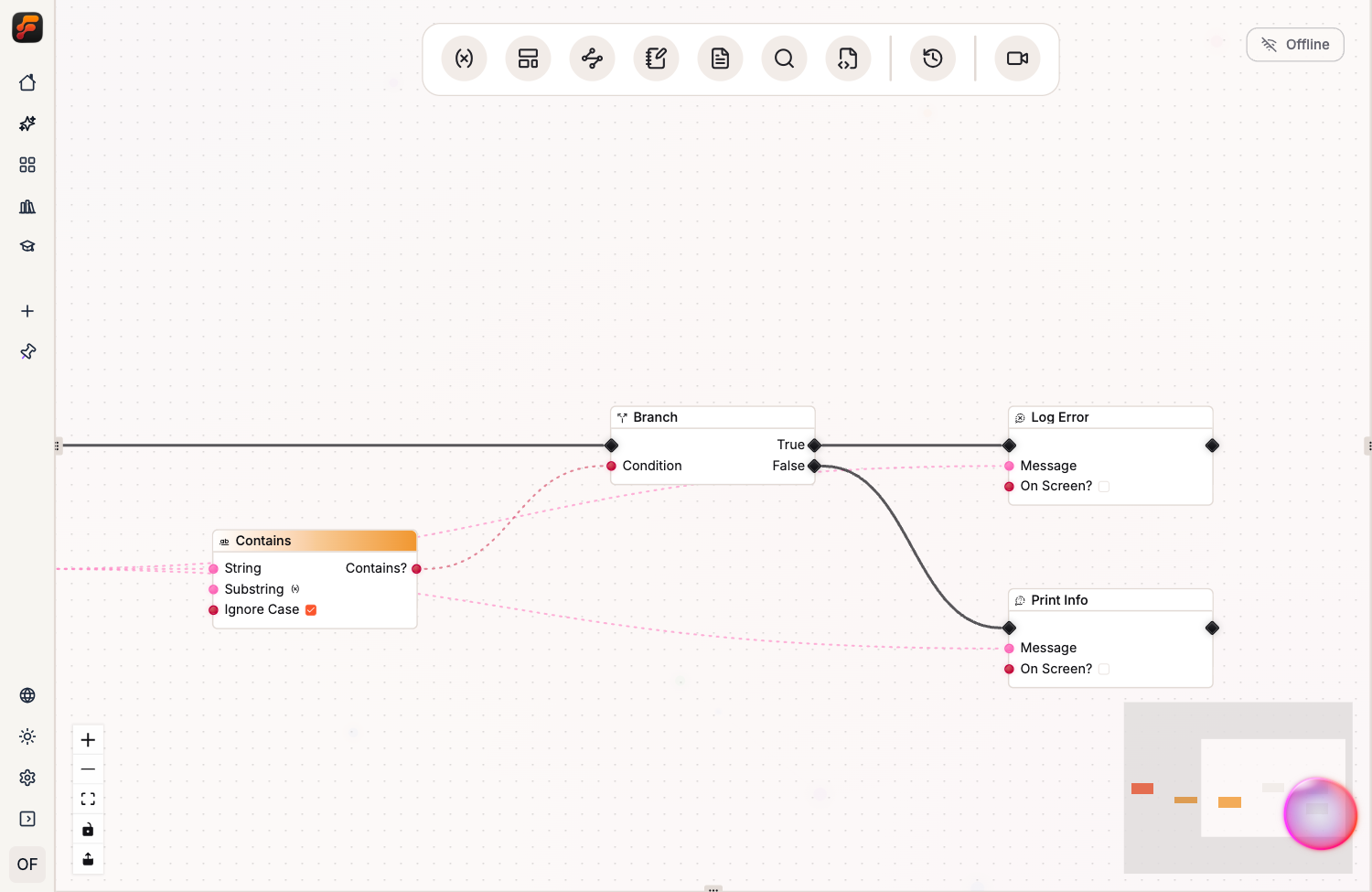

The solid execution path reaches exactly one logging node; the dotted data wires only supply values.

The event starts control. Branch evaluates its Boolean data input and activates one of two execution outputs. The selected logging node then runs because control reached it—not because its Message input happened to contain a string.

FlowScript renders this graph as familiar control flow:

if (normalized.contains({ substring: "production is on hold", ignoreCase: true })) {
    error({ message: normalized, toast: false })
} else {
    info({ message: normalized, toast: false })
}

The if is not a comment laid over the graph. It represents the Branch node and its labeled True and False execution outputs. The statements inside each block are the impure nodes wired to those outputs.

Ordinary consecutive impure statements similarly represent an execution chain. Their order in source is meaningful because their side effects are meaningful. Sending a message before creating its recipient, charging a customer before validating an order, or writing a completion record before the work finishes are different programs even if every data value is available.

A failed impure node normally stops its own forward path: its ordinary successors are not queued, and the run records that a node failed. Flow-Like also makes recoverable failure visible in the graph.

Some nodes define outcome paths as part of their own contract. The current API Call node, for example, exposes Success and Error execution outputs. A completed HTTP exchange selects Success only for a successful status and selects Error for other responses, while keeping the response available as data. A transport-level failure is a different case: it is a node error rather than a completed response outcome.

For an unexpected error on any executable node—including one that already models normal Error outcomes—the current Studio toolbar can enable Handle Errors. This adds an On Error execution output and an Error string output. When a node fails and an On Error path is connected, the runtime executes that handler chain. The original node remains in Error state during the run, and its node-attributed Error evidence remains available afterward; successful handling does not rewrite history and pretend the operation succeeded. It means the Board dealt with the unexpected error rather than allowing it to unwind the run.

That makes remediation part of the program. An integration expected to fail occasionally can route its failure into an operation that creates a ticket, records a fallback, or asks a person to intervene. Whether to recover, retry, escalate, or stop is the Flow author’s decision under the organization’s policy—not an invisible global guess.

5.4 Pure work is demand-driven

A pure node has data pins and no Execution pins. It does not occupy a place on the control path. Instead, a consumer pulls its output when that output is needed.

In our first Flow, Branch needs its Condition. To obtain it, the executor follows the data dependency to Contains. Contains in turn needs the normalized report, so the executor follows the next dependency to Trim String. The canvas records that backward chain of demand:

When Branch asks for its condition, the runtime pulls the visible pure-data dependencies backward from Contains to Trim String.

The result then travels forward to the consumer. No execution wires are required between those pure operations.

This has several consequences.

First, an unconsumed pure chain does not run merely because an event started. A carefully wired formatter whose output connects to nothing is dead work, not a background task.

Second, a data producer becoming available does not “fire” its consumers. Values are pulled when an executing node asks for an input. This is why a correct data graph cannot rescue an impure node whose execution input is disconnected.

Third, “pure” is an execution contract, not a promise that the runtime will call the node exactly once. Demand can be zero, one, or multiple evaluations depending on consumers and execution contexts. Work that must happen once, work that costs money, and work with an externally visible effect belongs on an explicit execution path.

The current implementation detects purity structurally: if a node has any pin whose data type is Execution, it is impure; otherwise it is pure. That means the node author has a responsibility to make the declaration honest. Hiding a network call or a database write behind a node with only data pins would make cost and failure appear to be an innocent calculation. Flow-Like can enforce declared WASM capabilities, but pin shape alone cannot prove mathematical referential transparency.

A useful design test is:

Would it be harmless if this operation were evaluated zero times or more than once?

Trimming, comparing, selecting a field, and formatting a value usually pass. Sending, charging, mutating, calling a paid model, or asking an unreliable external system usually fail. Put the latter group on the execution path, where order and failure remain visible.

When debugging, this produces the two-pass method introduced at the start of the chapter:

1. Follow execution forward from the event and ask whether control could reach the node.
2. Follow data backward from the surprising input and ask whether its value could be produced.

Do not change wires until you know which story is broken.

5.5 Explicit sequence and explicit parallelism

Canvas position is for readers. It has no scheduling authority.

Three nodes arranged left to right do not run in that order because they look like a sentence. Two nodes arranged one above the other do not run concurrently because they look like branches. Execution pins, and the control nodes that activate them, define the behavior.

For ordinary sequential work, draw one unbroken execution chain:

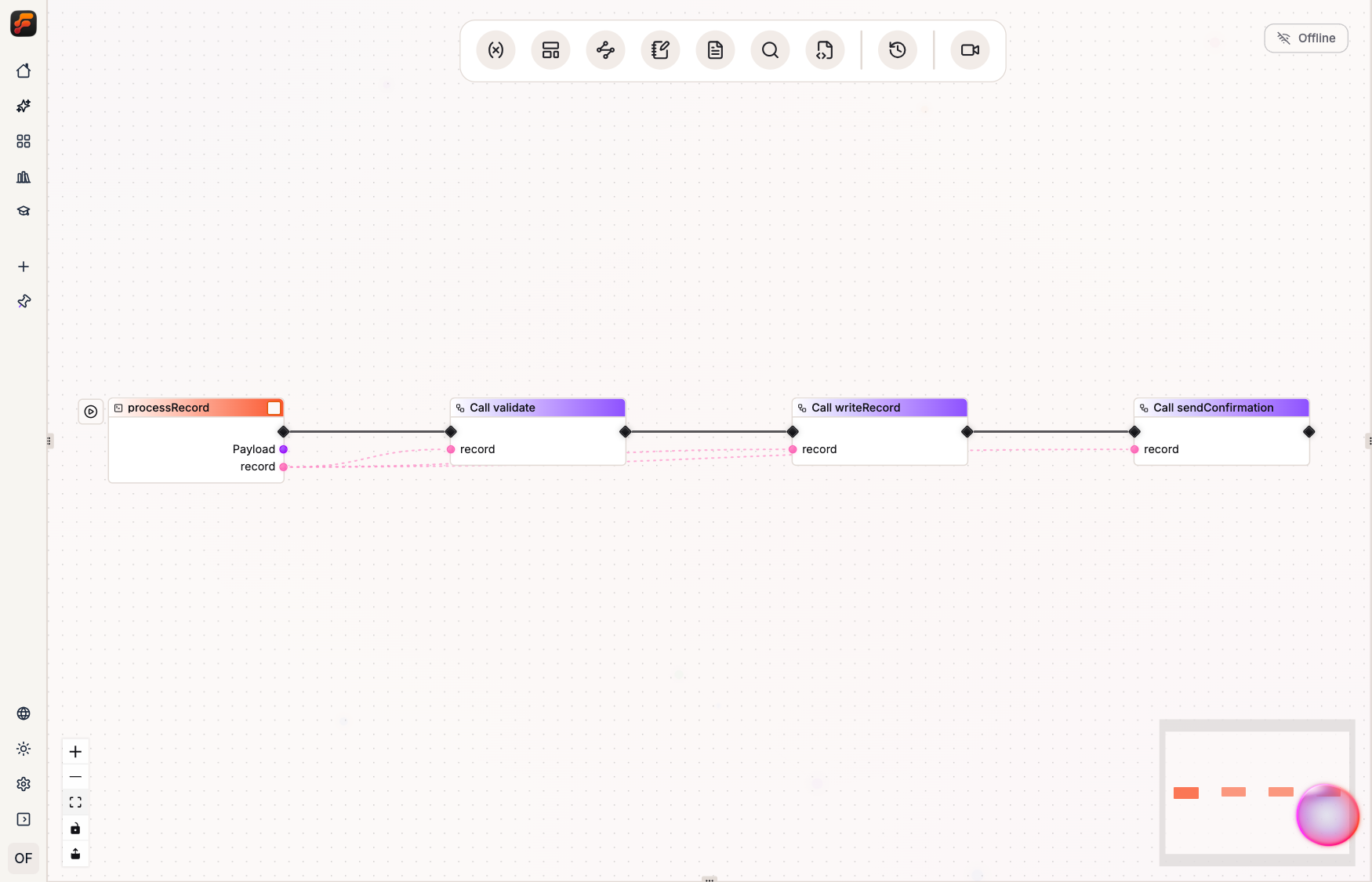

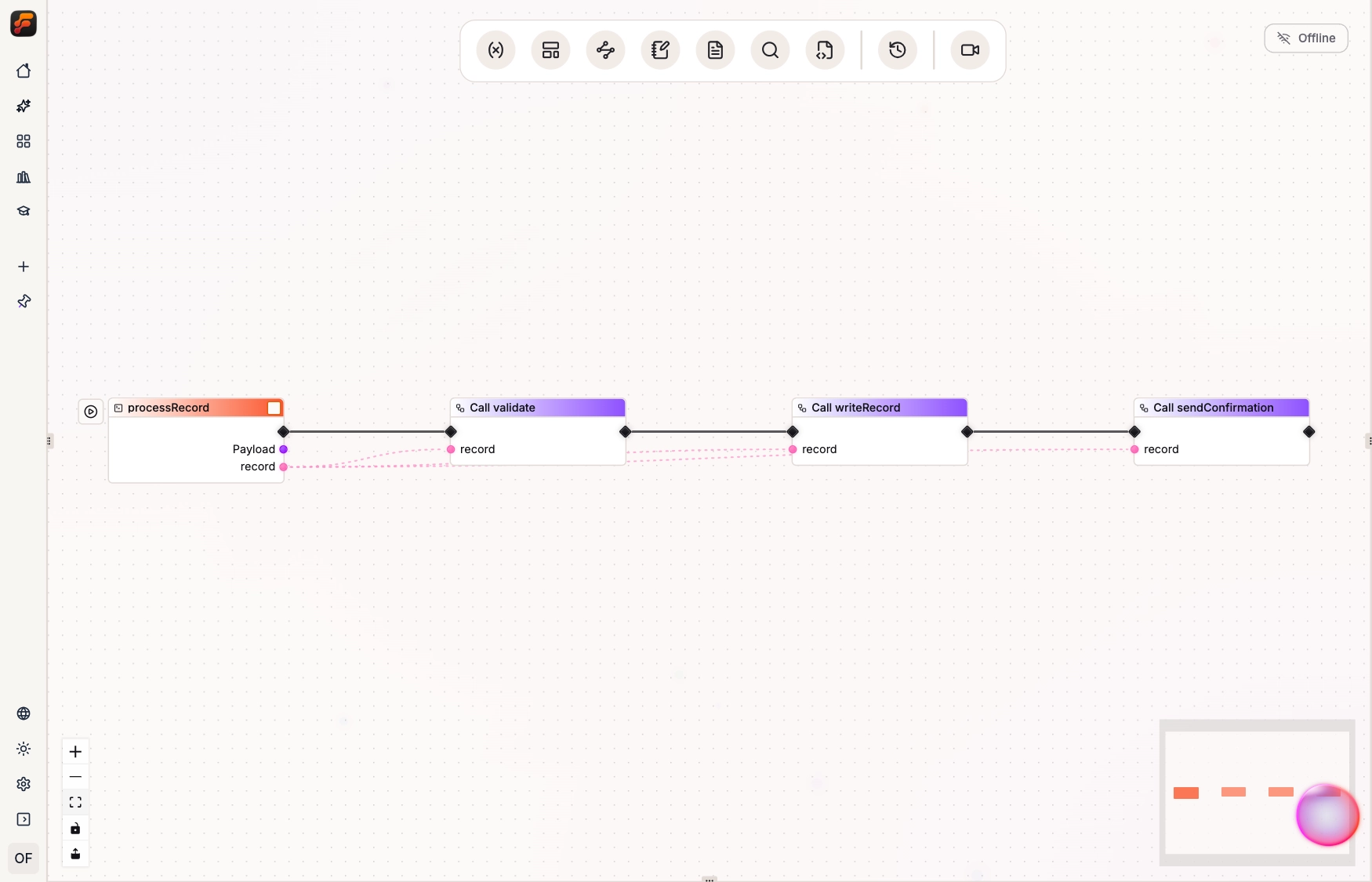

Consecutive impure FlowScript calls reconcile into one explicit execution chain.

In FlowScript, consecutive impure statements express the same intent. Each operation receives control only after the preceding operation’s selected continuation is reached.

When several complete branches must run one after another, Flow-Like also has a Sequence control node with ordered outputs. That is different from merely drawing several wires near each other: the node owns the ordering contract.

For concurrent work, use an operation whose contract says parallel. The current Parallel Execution node exposes repeatable task outputs and a Done continuation. It starts the connected branches as bounded asynchronous tasks by default, waits for them, and activates Done afterward. Its optional thread mode uses a multi-thread runtime when available and otherwise logs a warning and falls back to task mode. Parallel For Each provides the loop equivalent, including a maximum concurrency input; FlowScript can render its supported form with @parallel.

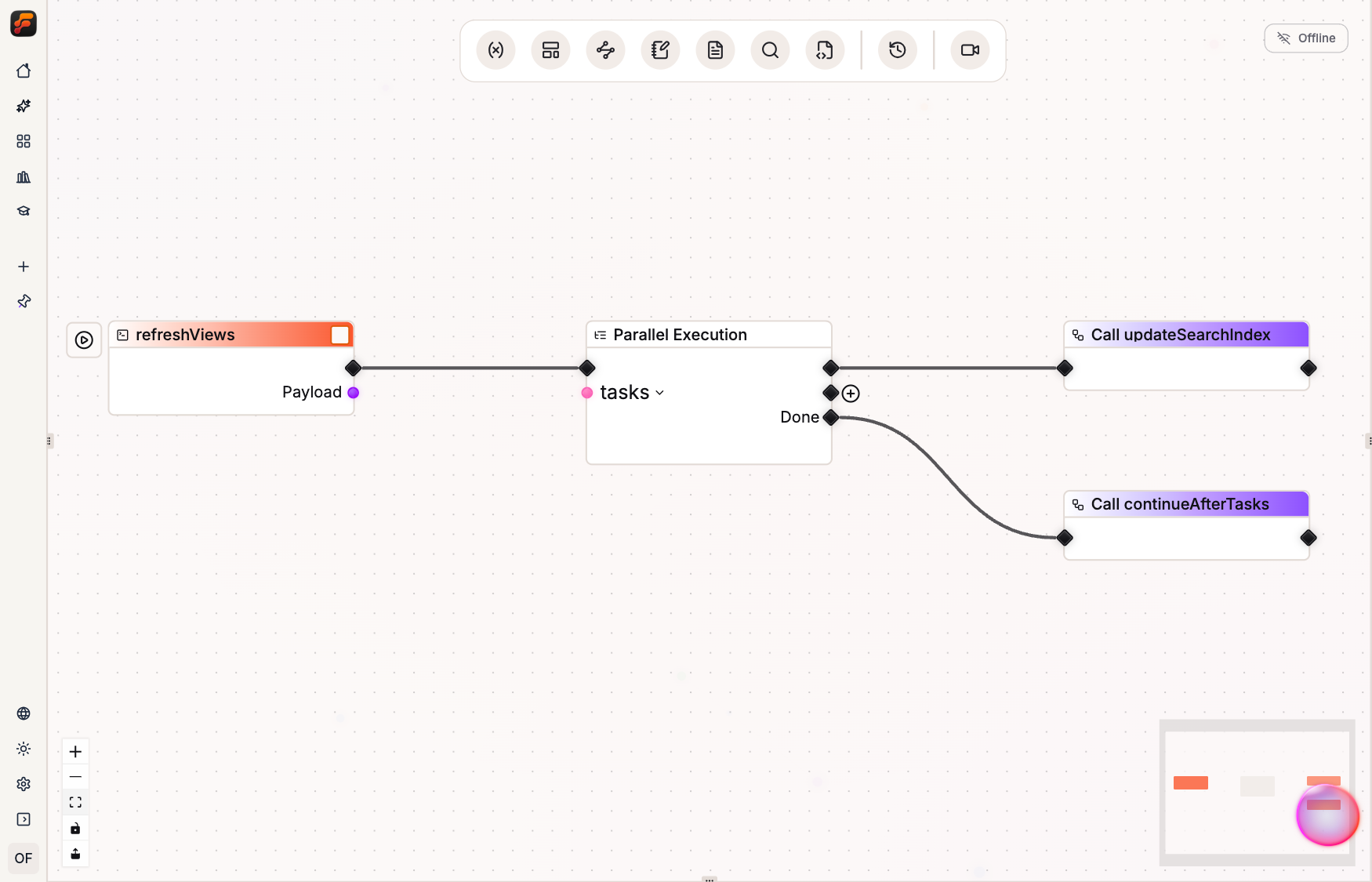

The shape is explicit. The task paths do not have to wire back into Done; the Parallel operation activates that continuation after the task branches settle. The source-authored example below wires one task arm and Done, while Studio can add more task branches through the repeatable output control:

The task tail remains separate from Done. The plus control adds repeatable task outputs on the Board; Done proceeds only after all connected task branches settle.

This is a concurrency promise, not an ordering promise. The branches may finish in any order. They must not race on shared mutable state unless the design makes that safe, and external effects must tolerate the ordering that the Flow declares.

Failure is likewise a control-flow decision. The intended default for visibly parallel branches is isolation between siblings: one failing branch does not prevent the other branches from continuing. The ordinary executor follows that model when several topology targets are ready: it schedules them concurrently, bounded by executor capacity. An unhandled failure ends that branch’s successors while the other ready targets continue.

After those siblings settle, the intended aggregate contract is simple: any unhandled child failure makes the whole run’s terminal status Failed. A failure that reaches and completes an explicit handler remains visible on its node and in attributed logs, but it does not fail the run.

The dedicated Parallel Execution node also collects its child branches and proceeds to Done after they settle. There is a current implementation caveat, however: Parallel Execution and Sequence can record a child error without always propagating that error into the enclosing run’s final status. Read the child nodes’ attributed logs; do not treat a successful outer control node as proof that every branch succeeded. This aggregation behavior must be tested and documented for the release used by the book.

Do not generalize that into “errors never stop anything.” A normal sequential path has different semantics, an unhandled failure has no ordinary continuation, and a purpose-built node may define its own outcomes. If completion of all work is required, put the join in the graph. If one failure must cancel or compensate for the rest, model that policy explicitly and verify the selected nodes’ contracts in the target release.

This explicitness costs a few pins and rewards us with an answer during an incident. We can point at the graph and say which work was ordered, which work was concurrent, where the join occurred, and which failure route was selected. Geometry alone could tell us none of that.

5.6 Layers organize; functions are callable

Large Flows need depth, but depth should not create a second hidden program.

A layer folds a group of nodes behind a named, typed boundary. Wires that cross the selection become boundary pins. Open the layer and the same nodes, data dependencies, execution paths, comments, and nested organization remain available. Collapsing changes how much of the graph we see at once; it does not change the rules that run inside it.

Suppose Incident Triage eventually grows from six nodes to sixty. Normalization might include language detection, identifier extraction, enrichment, and validation. We could collapse that inline region into a layer named Prepare Incident. Before doing so, compare the related function form: FlowScript can directly author the same top-level sentence as named callable boundaries.

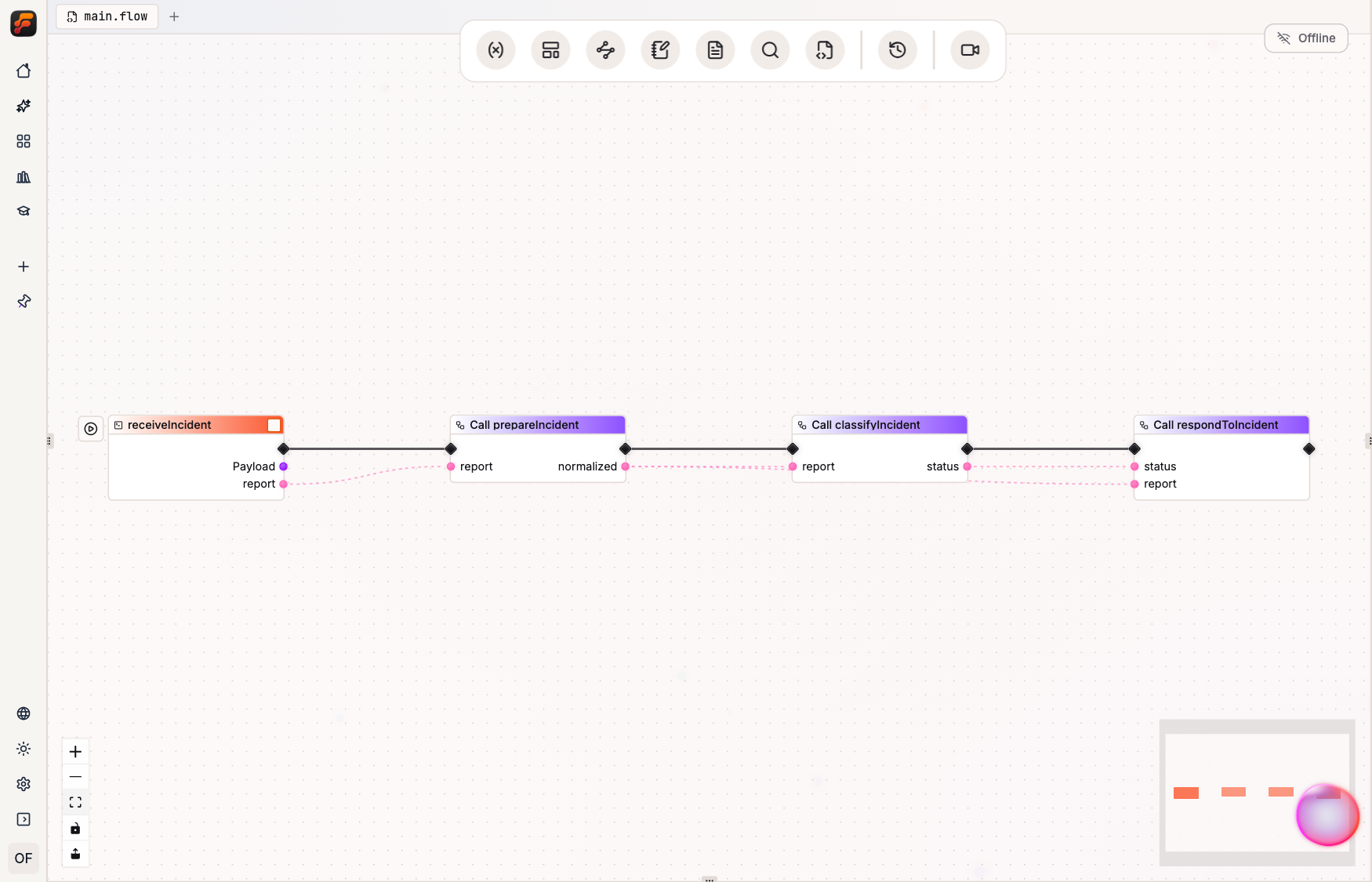

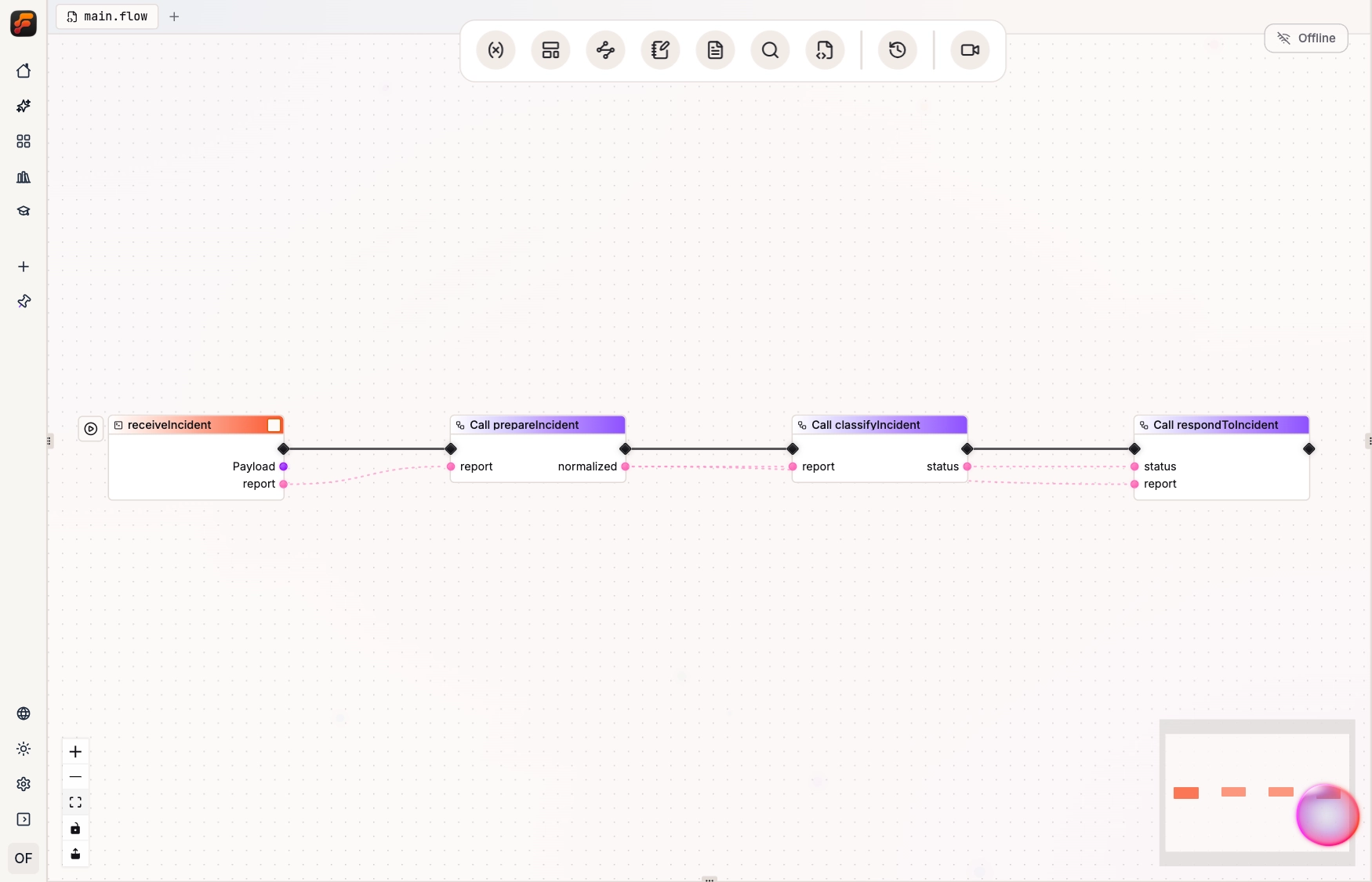

This is deliberately the function form: three Call nodes carry both the execution chain and typed data across named boundaries.

Each purple Call node in that render refers to a function layer, not an ordinary collapsed layer. Opening prepareIncident reveals its maintained callable implementation and signature. If the normalization nodes instead remain one inline region, collapsing them into an ordinary Prepare Incident layer can present a similar high-level label without making the region reusable. Its Start and Return boundaries show exactly which typed values and execution paths cross the layer edge. An inner failure remains an inner node failure; the layer is a door, not a black box.

A function is related, but not synonymous. A plain layer organizes one inline region of a Board. A function layer defines logic that callers can invoke from more than one place. Its boundary pins become a callable signature, and a Call Function node represents each call on the graph. FlowScript can therefore give reusable graph logic familiar function syntax without replacing it with hidden source-only code.

The distinction produces a simple rule:

• Use a layer when one part of the Flow needs a clearer name and a lower level of detail.
• Use a function when several callers need the same behavior and one maintained contract.

Callable boundaries carry obligations. Pin names must be unique because callers address the signature. An impure function needs a single execution entry and a valid continuation so the runtime knows where the call begins and how the caller resumes. A genuinely pure function instead returns demanded values without pretending to have an execution path.

Neither mechanism excuses vague architecture. A two-node layer named Layer 2 hides more than it explains. A function extracted before reuse exists adds an interface without reducing duplication. Name both after their responsibility, keep their boundaries narrow, and treat changes to those boundaries as changes to an API.

We now have the mental model for the rest of FlowScript. Calls resolve to typed nodes. Arguments and results resolve to data pins. Statements and control blocks resolve to execution paths. Pure expressions are evaluated on demand. Sequence and concurrency are declared rather than inferred from layout. Layers manage visual depth; functions add reuse.

The source can become concise because the graph stays precise.
