10. Branches, Loops, Parallelism, and Return

Control flow in FlowScript looks familiar:

if (critical) {
    notifyOperations()
} else {
    recordForReview()
}

for (const report of reports) {
    classify(report)
}

But it does not disappear into an invisible instruction pointer. An if is a node with visible execution outputs. A collection loop owns an iterable, exposes the current value and index, and repeatedly triggers its body path. While owns a condition and maximum iteration count. The statement after either loop is connected to Done. A return either wires data to a function boundary or terminates one Event execution branch.

This leads to the central rule of the chapter:

Control flow is topology. Every path that can run, fail, repeat, or finish should remain visible in both source and the workflow.

That visibility matters most when something goes wrong. During the 3 a.m. incident from Chapter 1, the only initial fact was a domain report: production was on hold. A Flow-Like implementation could not guarantee that the underlying dependency would never fail. It could make the decision, the attempted call, its expected Error route, any unexpected failure, and the recovery work inspectable at the responsible nodes.

Release check: The current language supports Boolean branches, named execution arms, sequential and parallel collection loops, bounded while, and return expressions. Several details deliberately differ from TypeScript. @parallel currently implies a concurrency limit of 30. Plain while implies at most 15 iterations. FlowScript has no break or continue statement. Function return does not yet perform function-wide early termination. The current sequential, parallel, while, and break-capable loop nodes also log and absorb errors returned by their child paths. They do not fail fast solely because a child returned an error: collection loops continue remaining items, While reevaluates its condition, and the break-capable node then samples Break. The enclosing run can still finish with a Success status despite Error evidence. That conflicts with Flow-Like’s intended aggregate-failure invariant and is an implementation gap, not a reliability guarantee.

10.1 if, else if, and else

Use if when a Boolean value chooses an execution path:

if (report.contains({
    substring: "production is on hold",
    ignoreCase: true,
})) {
    error({ message: report, toast: false })
} else {
    info({ message: report, toast: false })
}

The condition resolves to a Boolean data input on a branch node. The two blocks connect to its True and False execution outputs. At runtime one of those outputs becomes active. Moving one block below another on the canvas cannot change the choice; only the wires and the condition do.

This is different from the ternary in Chapter 9:

let status = critical ? "critical" : "investigate"

The ternary selects one value. if selects an execution path. Use if when the alternatives contain calls, writes, retries, tickets, or other work that should run only on the selected side.

FlowScript accepts an else if ladder:

if (productionStopped) {
    status = "critical"
} else if (degraded) {
    status = "warning"
} else {
    status = "healthy"
}

Canonical source currently renders the same graph as a nested branch:

if (productionStopped) {
    status = "critical"
} else {
    if (degraded) {
        status = "warning"
    } else {
        status = "healthy"
    }
}

The second form shows the actual topology: the second decision is reached only through the False arm of the first. The indentation is not merely style; it describes which branch owns the next decision.

A branch is not an error handler

A False arm means that a Boolean condition evaluated to false. It does not catch an error thrown while calculating the condition or running the True arm. Expected negative outcomes should have their own modeled execution output. Unexpected node failures use the node’s Handle Errors path when the Flow is designed to recover from them. Those are separate contracts, which is why the visual workflow can show them separately.

10.2 Named execution arms

True and False are not sufficient names for every decision. The built-in HTTP API Call node, for example, has Success and Error execution outputs. FlowScript preserves those labels with a named arm block:

const request = http::request({ method: "GET", url: healthUrl })
const apiCall = http::fetch({ request: request })
apiCall {
    execSuccess: {
        info({ message: "Dependency is reachable", toast: false })
    }
    execError: {
        createIncidentTicket()
    }
}

apiCall is a handle to the call. It can expose data outputs such as apiCall.response, while the block below it connects work to the call’s execution pins. A node with three or more outcomes uses the same shape with one named block per connected arm. This is clearer than pretending every multi-outcome operation is a Boolean or hiding its routes behind exceptions.

For the current HTTP node, a completed 2xx response selects Success. A completed non-2xx response selects Error. A transport failure, an invalid request value, or a failure while reading the response can instead be an unexpected node error. Enabling Handle Errors adds the generic On Error execution path and an Error string output for that second category.

The distinction is operationally useful:

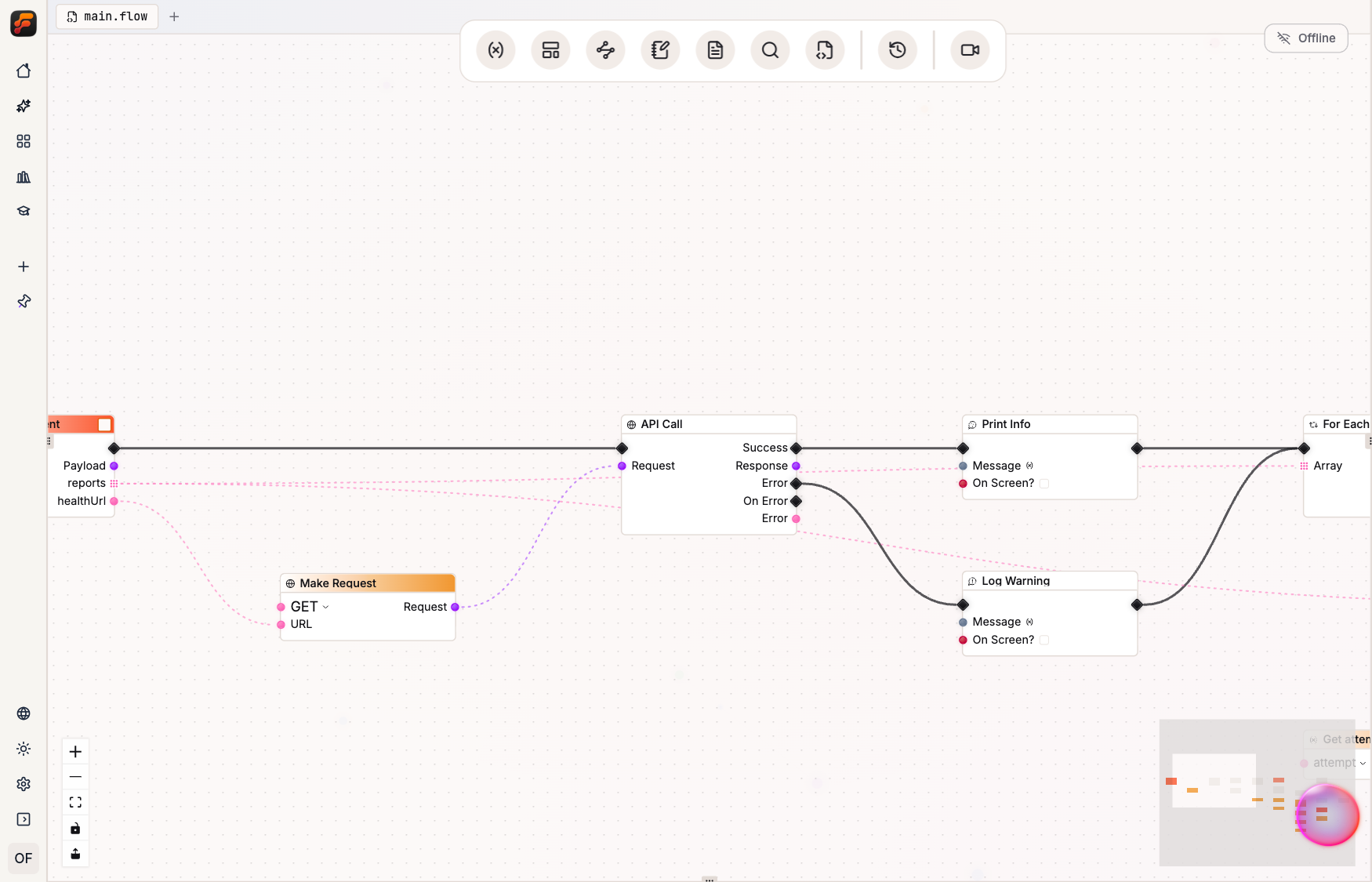

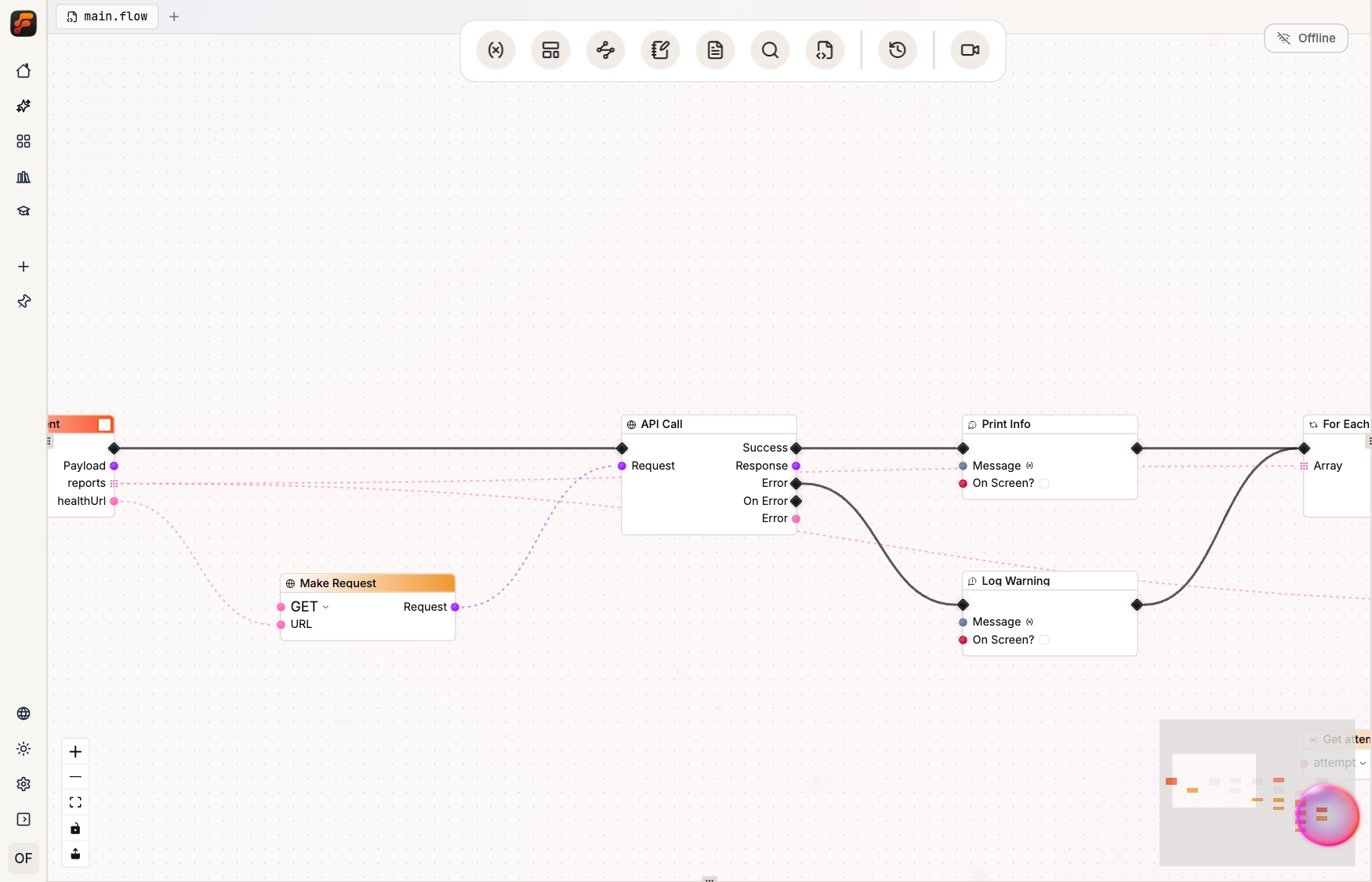

The source-authored Success and Error arms remain wired; this capture applies Studio's Handle Errors toggle so the generic On Error execution and Error string outputs are visible.

A Flow can route Error to a retry, ticket, or domain response without claiming that the node crashed. If an On Error recovery path completes, the runtime can continue while the original node still carries failed evidence. Handling an error does not erase where it happened.

Arm names are part of the node contract. Do not rename execError to something friendlier in source and assume it means the same thing. Canonical source camel-cases the internal pin name, such as exec_error to execError; Apply can also recognize supported raw and friendly spellings. Use the Board’s canonical rendering, editor completion, or Apply’s available-output diagnostic instead of guessing.

Some two-output nodes render in compact if (nodeCall()) form with comments such as // exec_out_exists and // exec_out_missing after the braces. Those comments are semantic pin labels, not disposable prose; they preserve which graph output each arm represents.

10.3 Sequential for … of

The ordinary collection loop is sequential:

for (const report of reports) {
    classify(report)
}

Bind the zero-based index as well when identity or ordering matters:

for (const [index, report] of reports) {
    info({ message: `#${index}: ${report}`, toast: false })
}

The loop evaluates its array once, then processes values in input order. For each element, it publishes the current value and index and waits for the connected body chain to settle before starting the next item. Only after every item does the Done output activate and allow the statement following the loop to run.

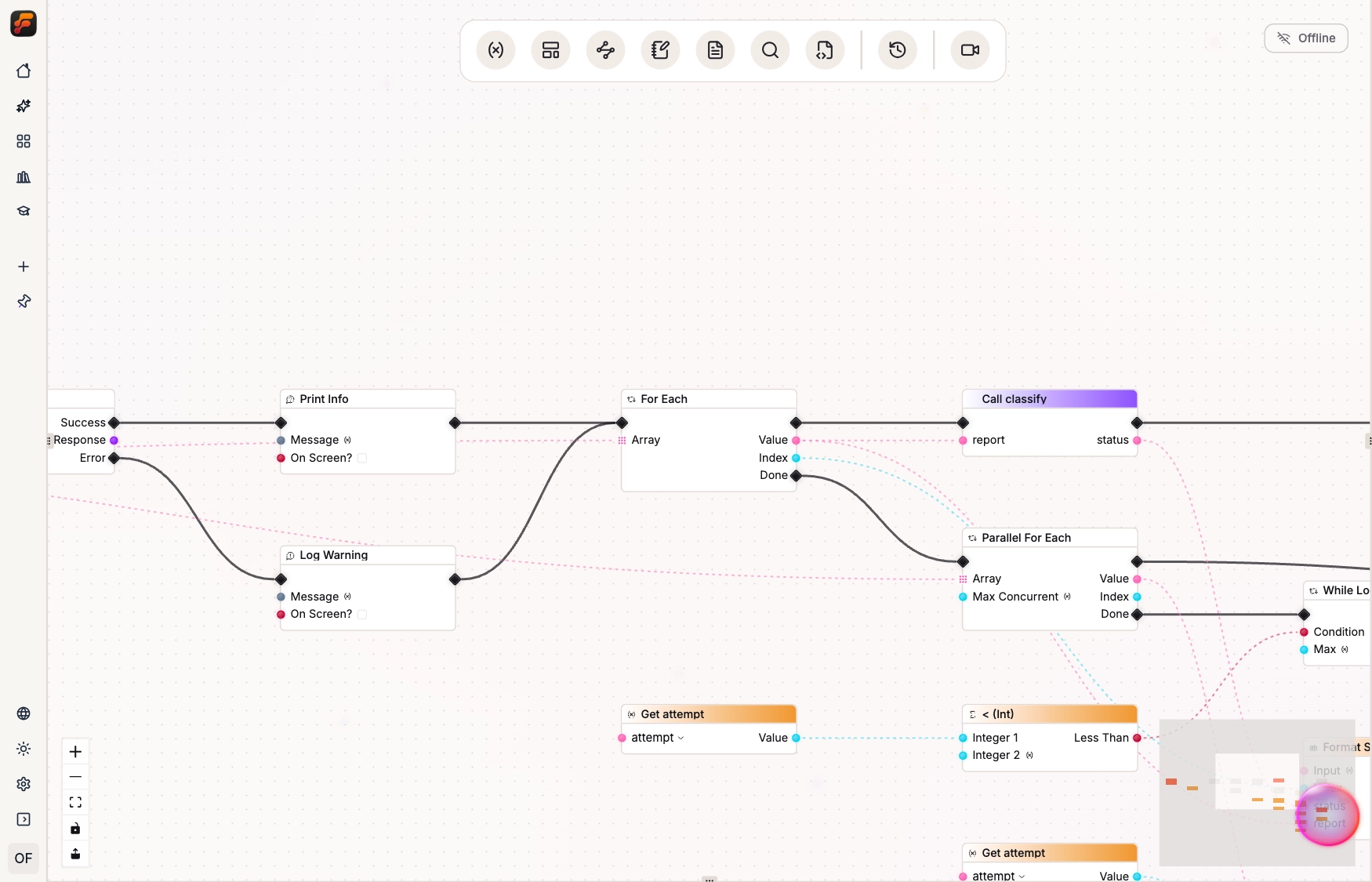

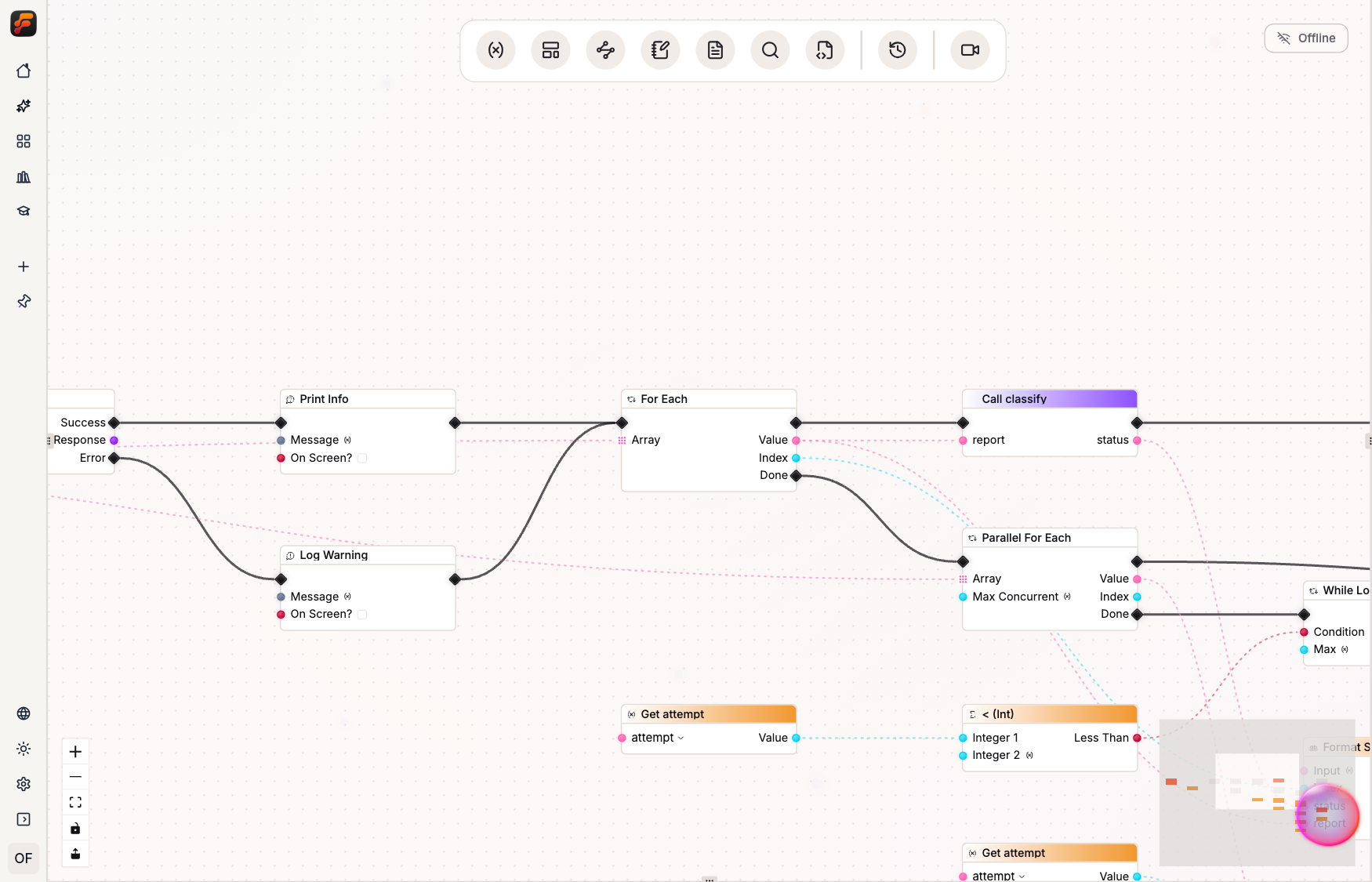

The static Board shows one body path: the runtime reuses it for each array item in order, then activates Done once.

This makes ordinary for the safe default when iterations touch shared or external state:

• an API with a strict rate limit;
• a ticket system where order or deduplication matters;
• a database update whose later write depends on an earlier one;
• a model call whose concurrent spend or provider rate must remain bounded; or
• any operation whose idempotency is not yet proven.

Sequential does not mean fail-fast today. The For Each node owns the iterations. If a body chain returns an unhandled error, that chain stops, the loop records an Error message attributed to the loop node and naming the iteration, and the next item still runs. Logs emitted inside the failed chain retain attribution to their child nodes. A modeled or handled failure can likewise route to ticket creation and then allow later items to proceed. This behavior is useful for batch-style work in which one bad record should not discard all good records.

It also creates a current status caveat. The loop node itself returns success after logging a child error, so the enclosing run may report Success even though a child trace and Error log show a failure. Flow-Like’s intended invariant is stricter: any unhandled child failure should make the aggregate run Failed after the remaining work settles. Until that invariant is uniformly implemented, a production Flow that must report “all records succeeded” should model that fact explicitly—capture and collect per-item outcomes, then make the final success decision visible.

10.4 @parallel for

Parallelism is an opt-in promise that iterations may overlap:

@parallel
for (const report of reports) {
    inspectIndependentReport(report)
}

The current Parallel For Each node starts work for independent items up to its configured concurrency limit. The @parallel sugar is lossless only at the node’s default of 30. A custom limit remains an explicit call so the meaningful setting cannot disappear:

for (const parallelForEach of control::parallelForEach({
    array: reports,
    maxConcurrent: 5,
})) {
    inspectIndependentReport(parallelForEach.value)
}

maxConcurrent: 1 schedules one task at a time. A positive value bounds active item/body-root tasks; most loops have one body root, so it behaves as the familiar number of active iterations. 0 is documented as unlimited, and the current implementation treats any non-positive value that way. Unlimited concurrency is rarely a responsible setting for an external service.

Done is a barrier, not an ordering guarantee

Parallel For Each waits for every child to settle before it activates Done. It does not expose a collected-results array, and side effects may complete in any order. Carry the original index, collect the per-item results, and sort them when order matters. The catalog’s execution-only Gather node can provide a barrier, but it does not collect data values for you. Never infer result order from the vertical position of nodes, log arrival time, or the order in which parallel branches appear to finish.

A failing child does not cancel its siblings. The current node continues scheduling remaining items, drains all child work, logs each returned failure, activates Done, and returns success from the loop node itself. The aggregate-status gap described for sequential loops therefore also applies here.

Parallel execution is not automatically faster or cheaper. Before opting in, answer these questions:

1. Can the iterations safely run in any order?
2. Are writes idempotent, or can a retry create duplicates?
3. What are the downstream rate and connection limits?
4. What is the maximum acceptable simultaneous model, network, memory, and cost load?
5. How are individual failures represented and collected?
6. What should happen to already-running siblings after one failure?

The production default is simple: keep external API calls, model calls, ticket creation, and database writes sequential until bounded concurrency has been justified. Parallelize independent work because its contract permits overlap, not because an annotation is available.

10.5 Bounded while

Workflow loops must have an operational ceiling. The compact form is:

let attempt = 0
while (attempt < 3) {
    pollDependency()
    attempt = attempt + 1
}

Before each body run, While retriggers the dependencies of its condition and evaluates the Boolean again. The body runs only while that value is true. The current node also has a maxIter guard. A plain while (condition) preserves the default value of 15; changing the guard makes the node call explicit:

while (control::whileLoop({ condition: retryReady, maxIter: 3 })) {
    pollDependency()
}

The maximum bounds the number of body starts and prevents an accidentally true condition from starting bodies forever. It does not prove that the loop made progress, enforce a wall-clock deadline, add delay or backoff, or cancel a slow operation inside the body. Those policies still belong to the Flow and the called nodes.

There is another current edge to understand: if the condition remains true at the maximum, While silently activates Done. It has no separate Exhausted output and emits no warning merely because the ceiling was reached. A Flow in which exhaustion means failure must make that state explicit, for example by maintaining an attempt value and checking it after the loop before choosing Success, Retry Later, or Escalate.

Body failures currently follow the same ownership rule as collection loops: they are logged, the loop proceeds to reevaluate its condition, and it can still finish successfully. A failure while directly evaluating the condition can propagate, while a failure to retrigger a dependency is currently logged before the loop exits through Done. These details are release-sensitive and deserve runtime tests before a Flow relies on them.

Cancellation is cooperative. A stopped run is observed at node boundaries, and long-running nodes must cooperate with cancellation themselves. The plain loop nodes do not currently stop walking or scheduling iterations as consistently as the batch-loop variants. A maximum iteration count and timeouts on external operations therefore remain useful even when a caller can cancel the run.

10.6 Stopping and skipping are structural today

FlowScript does not currently have break or continue statements. To skip the remainder of one ordinary iteration, put that remainder behind a branch:

for (const report of reports) {
    const relevant = isRelevant(report)
    if (relevant) {
        classify(report)
        persistFinding(report)
    }
}

The False arm contains no further work, so that execution path reaches the end of the body and the loop advances. On the Board, the skipped path is obvious rather than hidden in a jump statement.

The catalog also contains a separate For Each (Break) node. It samples a Boolean Break input before the loop and after each body root; a true value stops any remaining body roots and later items, then activates Completed. That node is available visually but is not currently part of FlowScript’s structured loop registry, so it does not round-trip as a break keyword or ordinary for sugar. Treat it as an explicit catalog capability and verify its rendered source against the target release.

This is a real authoring gap, not an invitation to emulate arbitrary jumps. A future text form should preserve the same visible stop condition and Completed path in both views.

10.7 return is a boundary, not stack unwinding

In a function, return values map positionally to the declared output pins:

function classify(report: string): (status: string, normalized: string) {
    const normalized = report.trim()
    let status = "investigate"
    if (normalized.contains({ substring: "production is on hold", ignoreCase: true })) {
        status = "critical"
    }
    return status, normalized
}

The first expression wires to status; the second wires to normalized. Literals can be materialized as typed values, and a previously bound call output can supply a return pin. Validation reports extra return values or declared output pins left without a source rather than guessing how an arity mismatch should be repaired.

What this does not mean today is JavaScript-style early return:

// Do not rely on this shape to terminate the whole function today.
if (invalid) {
    return "rejected"
}
performSideEffect()

The current function reconciliation wires data to layer output pins; there is not yet a function-wide execution-terminating Return node. FlowPilot’s intermediate representation consequently rejects nested function returns and permits a single final, unconditional top-level return. Write functions in that supported shape. When early selection is needed, branch to compute or assign the result, rejoin, and return it once at the boundary.

An Event return has a different implementation:

eventsGeneric status(payload: Struct) {
    return "accepted"
}

It becomes a terminal Return Result node with no execution successor. It ends that execution branch and publishes one Event result. An Event accepts at most one return value; wrap several fields in a Struct when the caller needs a compound response.

Even an Event return does not cancel sibling execution branches. In addition, current execution surfaces do not all aggregate several competing result events the same way. Synchronous server and remote callers usually retain the first emitted result. Subcontext merging overwrites with the last merged child result, UI run state displays the last result event it received, and streaming SSE forwards every result event. Parallel timing makes any implicit choice a poor business contract.

The robust rule is therefore:

Produce one logical result path per invocation. Do not race several return statements and let timing choose the caller’s answer.

When branches can finish with different domain outcomes, join them through explicit data and make one final selection before the result boundary. That design is easier to read, test, trace, and eventually migrate to a true function-wide Return node.

10.8 Read the whole control-flow example

The Chapter 10 fixture combines the forms in one small incident coordinator:

use log::{ info, warn }

function classify(report: string): (status: string) {
    let status = "investigate"
    if (report.contains({ substring: "production is on hold", ignoreCase: true })) {
        status = "critical"
    }
    return status
}

eventsGeneric coordinateIncident(payload: Struct, reports: string[], healthUrl: string) {
    const request = http::request({ method: "GET", url: healthUrl })
    const apiCall = http::fetch({ request: request })
    apiCall {
        execSuccess: {
            info({ message: "Dependency is reachable", toast: false })
        }
        execError: {
            warn({ message: "Dependency returned an unsuccessful response", toast: false })
        }
    }
    for (const [index, report] of reports) {
        const status = classify(report)
        info({ message: `#${index} ${status}: ${report}`, toast: false })
    }
    return "incident coordination completed"
}

Read the same source as a workflow. The Event opens an execution path. API Call splits that path into named outcomes. Because both arms contain continuing work, the statement after the block fans in from both arm tails; the HTTP node itself has no separate Done output. For Each owns the reports, exposes value and index, and joins at Done. The function exposes one output pin. Return Result terminates the Event branch and supplies the caller’s value.

The complete canonical fixture also includes @parallel for and bounded while, and is checked by the repository’s FlowScript parser/renderer test. It remains deliberately small enough to inspect in both views. Complexity belongs in visible layers and functions, not in control flow that only one author can mentally simulate.

The goal is not to make FlowScript look like TypeScript at any cost. The goal is to make familiar control structures honest projections of a workflow whose paths, limits, failures, and results a system expert can understand during the next 3 a.m. call.
